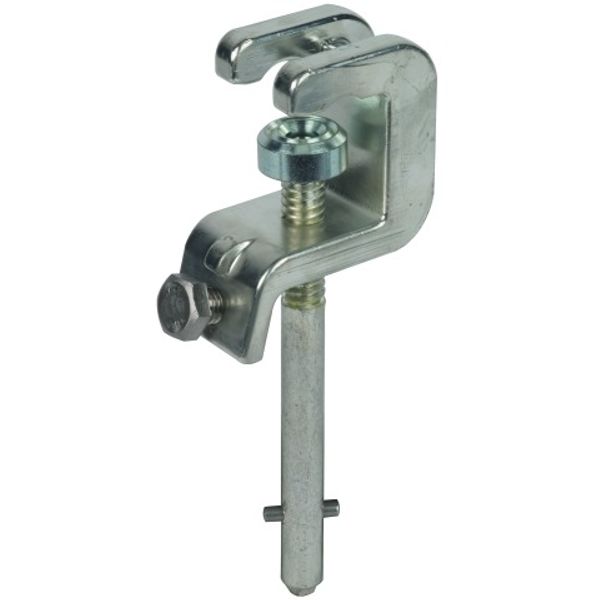

Universal clamp with T pin shaft for Fl/Rd -30mm a. fixed ball points

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

197,37 €

This price is valid until 31.12.25

EAN: 4013364005990

MPN: 773251

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Universal clamp with T pin shaft for Fl/Rd -30mm a. fixed ball points
Brand	Dehn
Categories	Tools, measuring instruments and protection
Country of origin	DE
Harmonized System Code	8538 9099 00
Connection type	Fixed ball point 25 mm
Clamping range	30 mm
Max. short circuit current	34 kA
For wire cross section	50 mm²

Packing details

Packing level 1

4013364005990, 4013364005990

Other Technical data

Application	Earth-side
Anti-rotation protection	Yes
Admission of the activation rod	Spindle with cross pin

Downloads

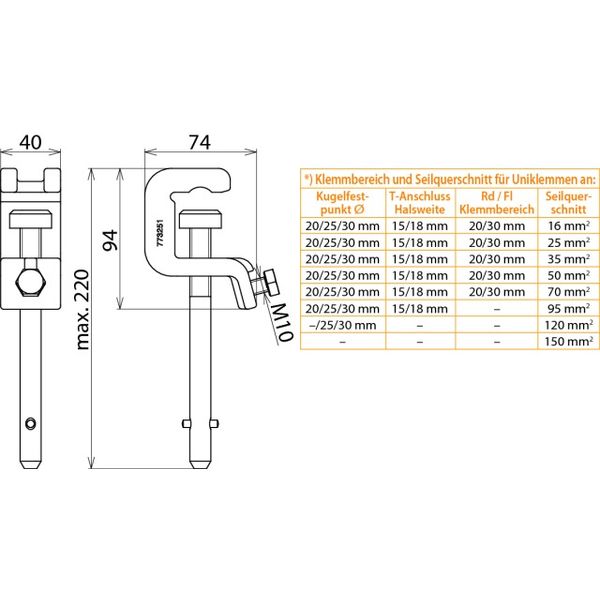

Product data sheet Dimensioned drawing Deep link REACH

Description

Universal clamp with T pin shaft in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting flat and round conductors up to 30 mm and fixed ball points with a ball diameter of 25 mm.
