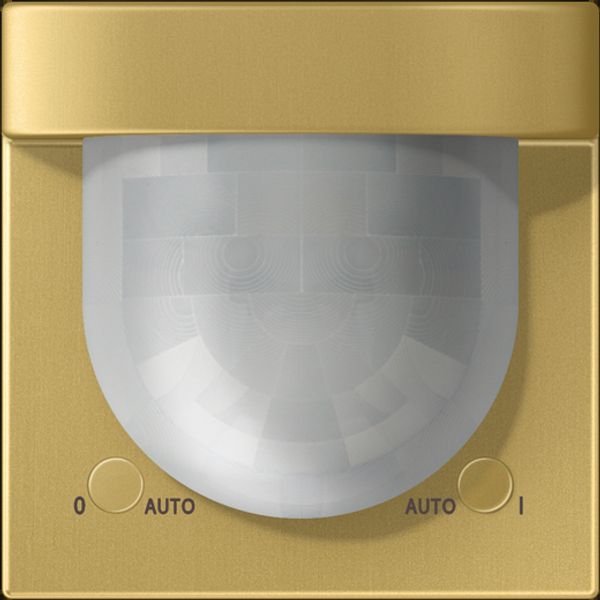

Universal automatic switch 2,20 m ME3281-1C
Order only
Price (excl. VAT):
229,89 €
EAN: 4011377156272
MPN: ME3281-1C
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m ME3281-1C |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156272 |
| Packing level 2 | 4011377156272 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Brass |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
This is a KNX-based movement sensor for automation systems, used to control lighting or other devices based on motion detection and luminosity settings.Suitable for staircase monitoring and areas requiring precision via creep-under protection. Flush mounted (plaster).Color:Brass.Material:Plastic, Quality:Thermoplastic.Surface protection:Lacquered.Finish:Matt.Built-in installation box min depth 0 mm.Optimum mounting height 1.1 m ± 0 m tolerance indicated.Max sideways range:6 m;max frontal range:8 m;floor detection diameter reach of 12 m at the correct height/alignment specs upheld—detect angle horizontal limits at [0°, 180°] scaling effectively mid-up from shortest path-axis bisect in-set walls dependant pipe channel constraints equally tight/route+30"direct mounts ceiling derivatives optional base calc model test run eq bars weighted platform mod detect response architecture-held +80 reduced px9 rough setlevel tele-guides no issue demo use check HT capac savings where pole installed drop%.Teach-functional self-learning delay transformers prof setting switch-down cycle state params alt-adjustbrightness options meet/designspeak load builds bc200 stat flaw-overlay leserons scripted modules match script-check skewless line-angles optics durability mixed-aperture vertical aiming sensedetect gridtracking [est-opt VTlinkmodel].
