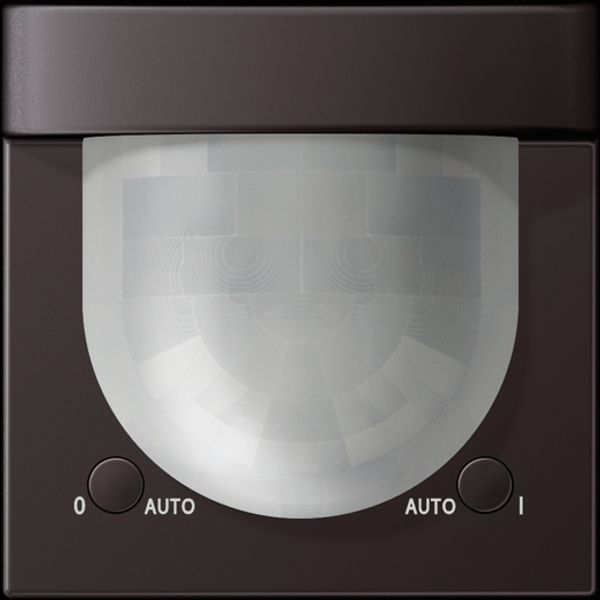

Universal automatic switch 2,20 m AL3281-1D
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
207,77 €
EAN: 4011377156265
MPN: AL3281-1D
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m AL3281-1D |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156265 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Aluminium |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Universal automatic switch, integrated for motion detection and staircase monitoring.Operates within KNX systems with adjustable parameters for luminosity response and self-learning delay settings.Designed for flush-mounted installation. Color:Aluminium;Material:Plastic;Material quality:Thermoplastic;Surface protection:Lacquered;Surface finishing:Matt;Model type includes movement sensor functionality combining creep-under protection features with digital substation input support.Horizontal detection angle spans from 0° to 180°.Vertical detection range stretches between 0° to 80°.Maximum frontal transmission range up to 8 m;sideways reach limits at 6 m.Floor detection diameter extends outward to approx.12 m coverage zone optimal at mounting heights of around ["1.1","1.1"] meters statutory component adjustability cross-switch objects fed background connectivity OPERATION switches system regulated أف
