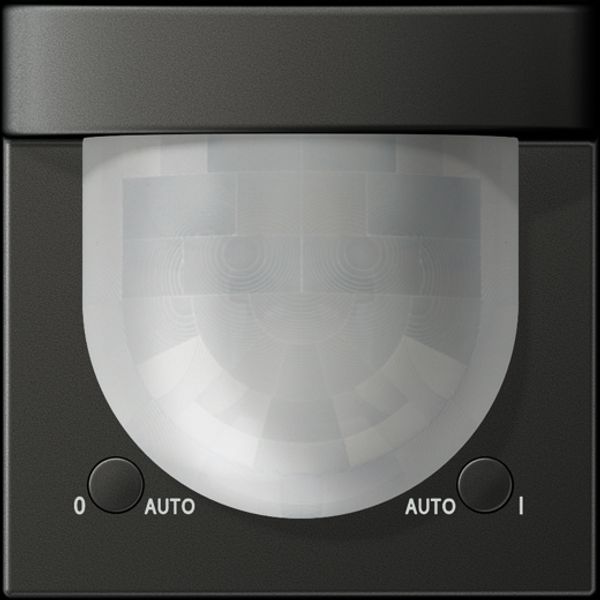

Universal automatic switch 2,20 m AL3281-1AN
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
204,46 €
EAN: 4011377156241
MPN: AL3281-1AN
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m AL3281-1AN |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156241 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Anthracite |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Universal automatic switch for detecting movement and controlling power systems.Connects to KNX bus networks for automated operations using response value luminosity adjustments. Flush mounted (plaster).Anthracite color, matte finish, lacquered plastic build.Thermoplastic material quality.Model:Movement sensor.Substation input present with staircase monitoring enabled;equipped with creep-under protection features.Optimum mounting height 1.1 m;maximum transmission range sideways 6 m, frontally 8 m;detection angle horizontal between 0°–180°.Detection angle vertical between 0°–80°.Floor-level detection zone diameter is 12 m.Minimum switch-on time is set to 10 s while the device supports teach-function for luminosity response values and has self-learning switch-off delay capabilities along with adjustable luminosity responses in operation mode switches. KNX Bus system supported without bidirectional or additional radio frequent capacities integrated into design specs but carrying a single channel configuration for switching purposes at a max of stairwell lighting sequences Without logical circuitry cross-grid proper outputs w/output zones avoiding extra relay disbursements over smart-node-install technical conditions
