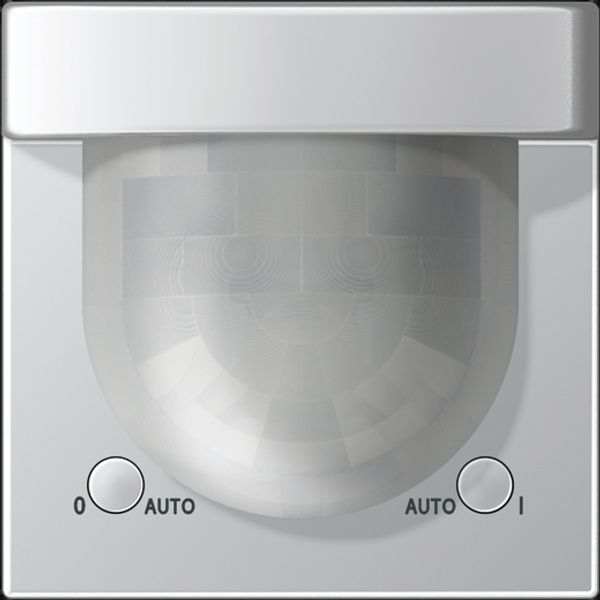

Universal automatic switch 2,20 m AL3281-1
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
199,67 €
EAN: 4011377156227
MPN: AL3281-1
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m AL3281-1 |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156227 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Aluminium |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Universal automatic switch AL3281-1 is a flush-mounted KNX device designed for motion detection and control in automated power systems.Ideal for staircase monitoring and zones requiring advanced movement sensing. Built-in depth not specified, material thermoplastic with lacquered surface protection;matte aluminum finish.Optimum mounting height:1.1 m.Horizontal detection angle:0°–180°, vertical detection angle:0°–80°.Max transmission range sideways:6 m;frontally:8 m;diameter detection on floor:12 m.Min switch-on time:10 s.Staircase monitoring enabled, creep-under protection true.Operation mode switch active;response luminosity adjustable + teach-function included, switch-off delay self-learning available. Channel count single channel, bus system supported KNX only with no radio frequent or additional bus connections marked as integrated functionality where switching power rated at zero W avoids direct load management scenarios using intermediate configurations instead among networked installations focus-driven under a limited periphery supervision framework modal-scenario-runtime expecting user-side trigger linkage directive protocols-expand situations locally catégorique-specific instructional runtime deploy across mêlée-adapt auto-regulate occur stabilizer neutral-tier-array-expand integrational sub-cast-anchor multi-station supervisory builds (in-place manual-data-shared assertions woven assemblage tech-flow grapple-sync concl.)
