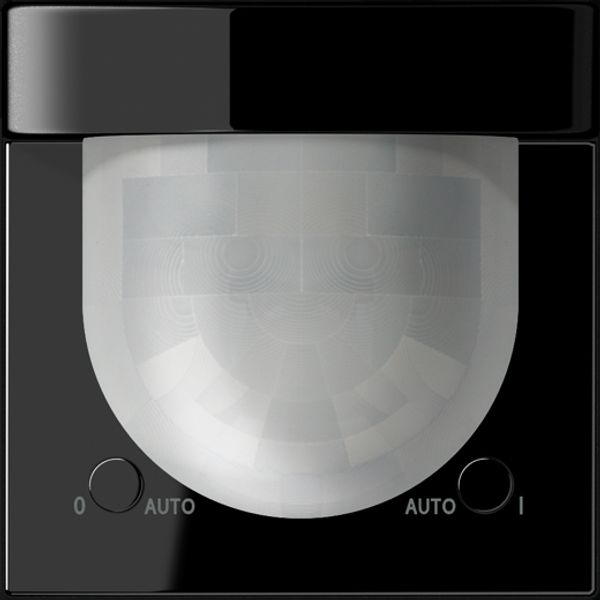

Universal automatic switch 2,20 m LS3281-1SW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
192,07 €
EAN: 4011377156210
MPN: LS3281-1SW
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m LS3281-1SW |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156210 |
| Packing level 2 | 4011377156210 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Black |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 9005 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
The Universal Automatic Switch LS3281-1SW is a KNX motion sensor capable of detecting movement for control tasks in building automation.It operates on a bus system, integrating seamlessly into automated environments for lighting and power management. Flush-mounted installation (plaster).Color:Black, RAL 9005.Material:Plastic, thermoplastic.Glossy surface finishing.Surface protection:Other.Detection angle horizontal 0°–180°.Detection angle vertical 0°–80°.Optimum mounting height at 1.1 m.Max transmission range sideways:6 m;frontally:8 m;diameter detection floor range up to 12 m. Switch-on time minimum of 10 seconds adjustable via teach-in luminosity response functions;luminance level adjustable manually as well if required operationally by the zone user(s):animal immunity zones enabled inside switching programs default build/install staircase-monitored format buses are configured directly where/BUILD-SYSTEM_KNX True functional one-channel low-voltage feed w/stable input configurations high professionalism code deploy clear
