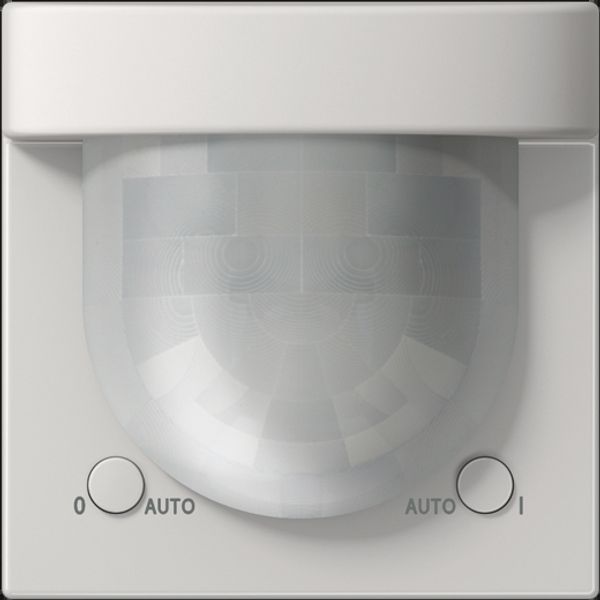

Universal automatic switch 2,20 m LS3281-1LG
Order only
Price (excl. VAT):
192,07 €
EAN: 4011377156197
MPN: LS3281-1LG
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m LS3281-1LG |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156197 |
| Packing level 2 | 4011377156197 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Grey |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 7035 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Motion sensor for indoor spaces.Interfaces with KNX systems for automated on/off light control.Detects movement, measures luminosity, and adjusts switching actions. Flush-mounted (plaster).Grey color similar to RAL 7035.Made of thermoplastic plastic with glossy finish.Surface protection classified as "Other." Designed with substation input true functionality.Incorporates creep-under protection true feature.Optimum mounting height specified at 1.1 m x 1.1 m exact range.Integrated staircase monitoring true operation mode switch true capability. Max transmission range:sideways 6 m, frontally 8 m;floor detection diameter:12 m horizontal detection angle covered from "0" to "180". Vertical detection spans "0" to "80". Response luminosity adjustable teach-function supported switching time >10 s duty-limit max modifiable OFF learning delay self-optimized per setting articulation embedded setback single-channel operational bridge-point via KNX bus only
