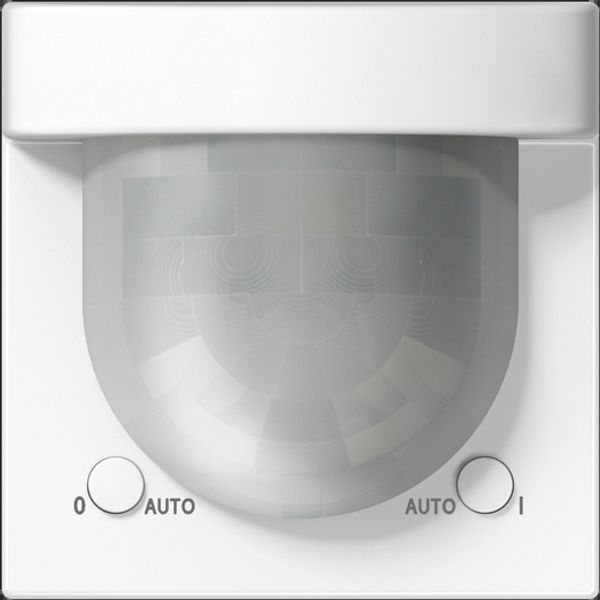

Universal automatic switch 2,20 m LS3281-1WW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
190,31 €
EAN: 4011377156180
MPN: LS3281-1WW
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m LS3281-1WW |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156180 |
| Packing level 2 | 4011377156180 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 9016 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Universal automatic switch used for motion detection and automated control in electrical systems.KNX bus integration ensures smooth connectivity for advanced building automation.Optimized for efficient lighting management and staircase monitoring. Flush mounted (plaster).Built-in installation box minimum depth 0 mm.White thermoplastic plastic with other surface protection, glossy finish, RAL-no.similar to 9016.Movement sensor model operational at optimum mounting height of 1.1 m, horizontal detection angle range between 0° to 180°, vertical detection angle range between 0° to 80°.Creep-under protection active;animal zone deactivated.Diameter detection range on floor up to 12 m;max transmission frontally:8 m, sideways:6 m.Response luminosity adjustable with teach-function enabled;minimum switch-on time is set as 10 s, maximum duty cycle unspecified/zero mins self-learning switch-off delay functional within operation mode’s manual input setting present or adaptable by user channels limited as single-channel KNX powered
