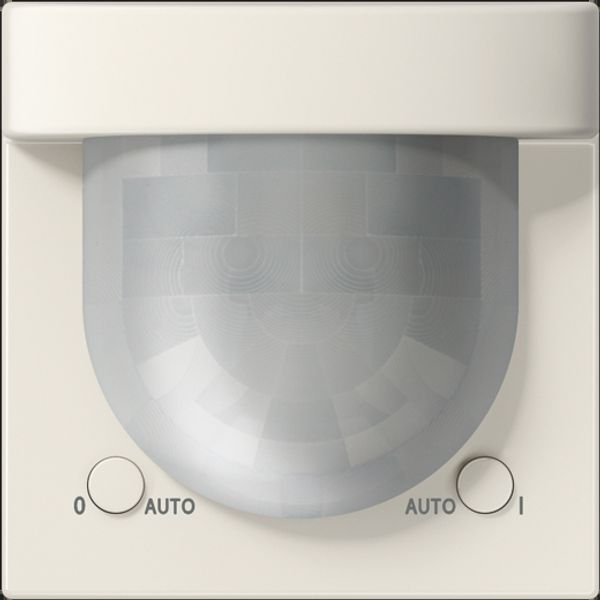

Universal automatic switch 2,20 m LS3281-1
Order only
Price (excl. VAT):
190,31 €
EAN: 4011377156173
MPN: LS3281-1
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m LS3281-1 |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156173 |
| Packing level 2 | 4011377156173 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 1013 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Universal automatic switch detects motion and adjusts power delivery in KNX systems, optimizing energy usage.Ideal for staircase monitoring and other controlled environments. Flush mounted installation (plaster).Material:plastic, thermoplastic.Glossy surface finishing with RAL 1013 color similarity.Optimum mounting height:1.1 m, vertical detection angle between 0° - 80°, horizontal detection angle between 0° - 180°.Max transmission range frontally:8 m;sideways range:6 m;floor diameter detection zone:up to 12 m.Adjustable luminosity response value with teach function available.Switch-on time minimum is fixed at ten seconds, self-learning switch-off delay supported.Creep-under protection enabled for precise operation zones;animal zone inactive to avoid false triggers from pets or small objects. Bus system compatibility includes KNX;other bus systems unlisted or irrelevant here (no radio frequency functionality).Single-channel operation mode confirmed alongside integrated operation mode switch feature present onboard the device’s architecture minimal setup intra-utility standards established maxable
