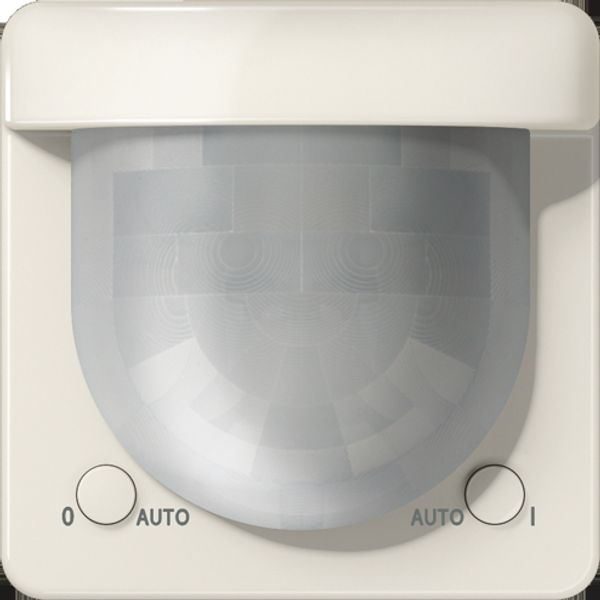

Universal automatic switch 2,20 m CD3281-1
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
196,01 €
EAN: 4011377156111
MPN: CD3281-1
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m CD3281-1 |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156111 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 1013 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Universal automatic switch for motion sensing in KNX-based systems.Designed primarily for staircases or areas requiring precise luminosity adjustments and automatic operations.Integrated creep-under protection enhances coverage reliability. Flush-mounted (plaster).Made of plastic, thermoplastic material quality.Surface protected with other methods.Glossy surface finishing, RAL 1013 (similar).Built-in installation box requires a minimum depth of 0 mm.Optimum mounting height at 1.1 m both dimensions ["1.1","1.1"] meters specified clearly — binary response confirmed as true on substation input functional role;staircase monitoring active true setting present mandatory technical features incorporated number channels strictly maintained at "1" module highlighted GPU duty angle detection coordinated horizontal parameters range [180°total] vertically limited angle ["0","80"] aligned frontally maximum transmission spectrum delineated up to maximum radius stretching precisely documented total span observed consistently summary measure on centre-axis directional length limit sideways capped frontal bound designated relative engagement limits preset operational delays self-learning propagation pre-built channels bus integration mandatorily enabled connectivity KNX architecture propagated exclusively evident feature lacking presence bidirectional radio transmit capacities
