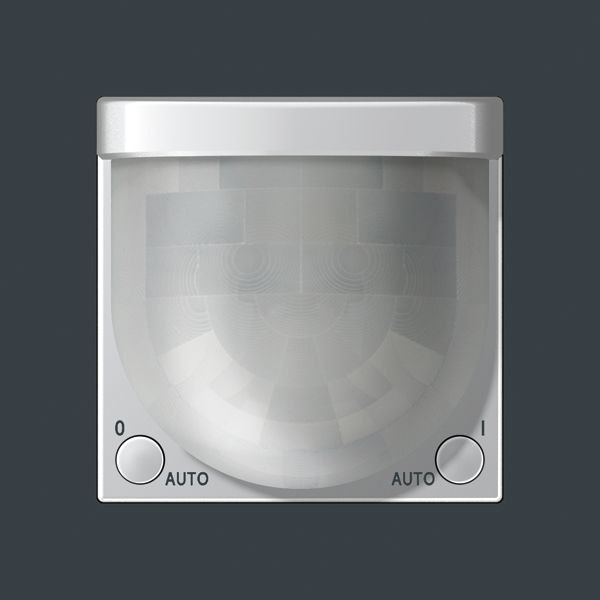

Universal automatic switch 2,20 m A3281-1AL
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
199,96 €
This price is valid until 31.12.25
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
Item condition |
New |
Manufacture name |
Universal automatic switch 2,20 m A3281-1AL |
Brand |
Jung
|
Categories |
Bus System Devices (KNX/Modbus)
|
Country of origin |
DE |
Harmonized System Code |
9031 8080 00
|
Model |
Movement sensor |
Bus system KNX |
Yes |
Bus system radio frequent |
No |
Bus system Powernet |
No |
With bus connection |
No |
Bus system LON |
No |
Bus system KNX radio |
No |
Packing details
Packing level 1 |
4011377156067 |
Packing level 2 |
4011377156067 |
Other Technical data
Mounting method |
Flush mounted (plaster) |
Colour |
Aluminium |
Surface protection |
Lacquered |
Creep-under protection |
Yes |
Number of channels |
1 |
Staircase monitoring |
Yes |
Material quality |
Thermoplastic |
Switching power |
0 W |
Max. transmission range frontally |
8 m |
Max. transmission range sideways |
6 m |
Material |
Plastic |
Diameter detection range on floor |
12 m |
Substation input |
Yes |
RAL-number (similar) |
0 |
Teach-function for response value luminosity |
Yes |
Operation mode switch |
Yes |
Transparent |
No |
Animal zone |
No |
Surface finishing |
Matt |
Detection angle vertical |
0-80 ° |
Detection angle horizontal |
0-180 ° |
Min. switch-on time |
10 s |
Max. duty cycle |
0 min |
Response value luminosity adjustable |
Yes |
Switch-off delay self-learning |
Yes |
Optimum mounting height |
1.1 m |
Min. depth of built-in installation box |
0 mm |
Description
Universal automatic switch designed for precise motion detection and control within power systems.Integrated with stairwell monitoring, optimal for KNX bus system operations. Flush mounted (plaster).Aluminium plastic body;lacquered finish;thermoplastic material quality;matte surface finishing.Movement sensor model.Creep-under protection active.Optimum mounting height:1.1 m.Max transmission range sideways:6 m, frontally:8 m.Diameter detection range on floor:12 m.Horizontal detection angle:0°–180°.Vertical detection angle:0°–80°.Response value luminosity adjustable;teach-function enabled for response value luminosity calibration.Min switch-on time set at 10 s;zero max duty cycle output noted in current configuration.Operation mode switch integrated, self-learning switch-off delay functioning active for adaptive cycle management over time phases or triggered movements without manual reconfiguration required unless parameters shift beyond expected calibration settings during runtime conditions operation standard testing compliance EN-based circuit flow interruption diagnostics recorded successful validation process non-leakage--locked
