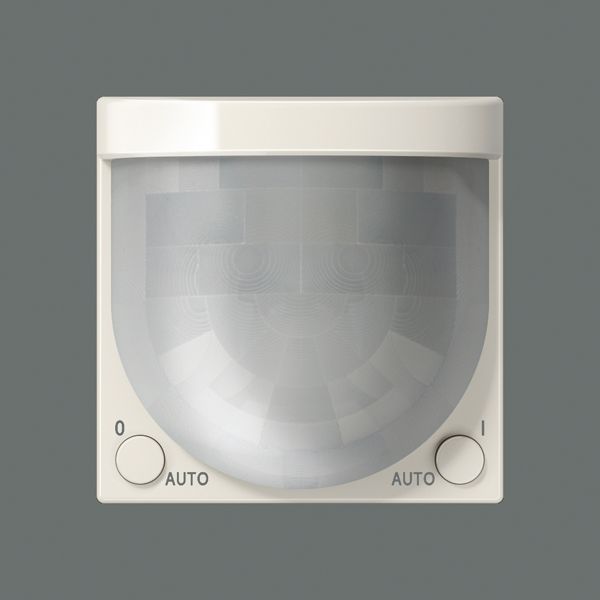

Universal automatic switch 2,20 m A3281-1
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
194,62 €
EAN: 4011377156029
MPN: A3281-1
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 2,20 m A3281-1 |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377156029 |
| Packing level 2 | 4011377156029 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Surface protection | Other |
| Creep-under protection | Yes |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Material | Plastic |
| Diameter detection range on floor | 12 m |
| Substation input | Yes |
| RAL-number (similar) | 1013 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Glossy |
| Detection angle vertical | 0-80 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Designed for integration into KNX bus systems, this automatic switch facilitates motion detection and lighting control with adjustable response luminosity and real-time adaptive features.It enables staircase monitoring and additional creep-under protection at an optimum mounting height of 1.1 m, extending automation in closed-loop environments. Flush-mounted plaster installation.Material:thermoplastic plastic with glossy finish.Color approximation RAL 1013.Max transmission range:frontally 8 m, sideways 6 m;diameter floor detection range 12 m.Detection angles horizontal:["0.000", "180.000"] °;vertical:["0.000", "80.000"] °.Min switch-on time duration:10 s duty cycle configurable;self-learning delay off mode supported.Bus compatibility includes KNX only (not radio).Teach-function enabled for response value luminosity adjustability switches dynamically under localized light levels automating outputs across one channel switching power rated zero watts
