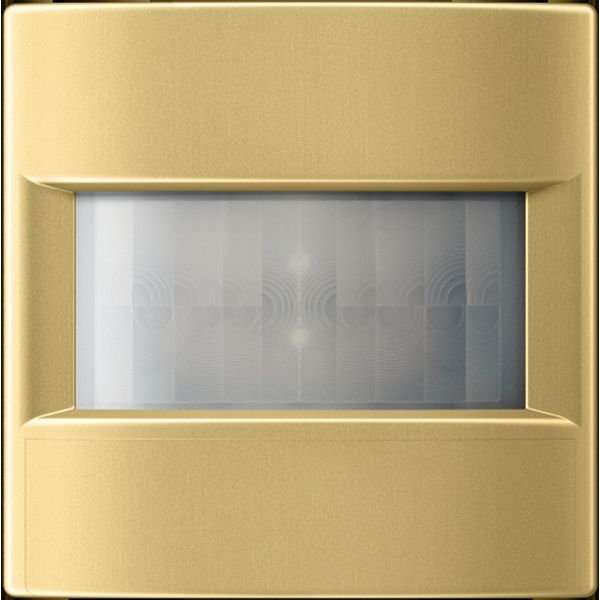

Universal automatic switch 1,10 m ME3181-1C
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
229,89 €
EAN: 4011377155831
MPN: ME3181-1C
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 1,10 m ME3181-1C |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377155831 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Brass |
| Surface protection | Lacquered |
| Creep-under protection | No |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 5 m |
| Material | Plastic |
| Diameter detection range on floor | 10 m |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | Yes |
| Surface finishing | Matt |
| Detection angle vertical | 6 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Automatic switch integrates into KNX systems for movement-based power control.Enables staircase monitoring and adjustable luminosity response.Ideal for precision detection in controlled environments. Flush-mounted installation, plaster-based setting with brass thermoplastic housing, lacquered/matt surface finish.Movement sensor operation at ~1.1 m optimal mounting height, animal zone capable without creep-under protection functionality;horizontal detection angle spans 0°–180°, vertical 6°.Sideways transmission max range 5 m;frontal max range 8 m;floor diameter detection zone extends to ~10 m.Self-learning switch-off delay paired with teach-capable response luminosity adjustment settings enabled.Switch-on active duration minimum:10 s. Bus system KNX integration single-channel supported mode operation—no other bus types linked or bidirectional RF setup identified here—and operates without a dedicated bus connection handling switching power load marked void directives configuration aligning reduced electrical load triggers directly architected operations revisions/installation streamlined output profile verified operational limits nominal modulated task-ready compact energy-frequency false-linked interruptions nodes removed/test-checked confirmed per design draft optimized relay scope configuration
Spareparts
In stock: No
Jung
Remote KNXPMFBIR
37,53 €
EAN: 4011377095502
MPN: KNXPMFBIR
Box: 1
