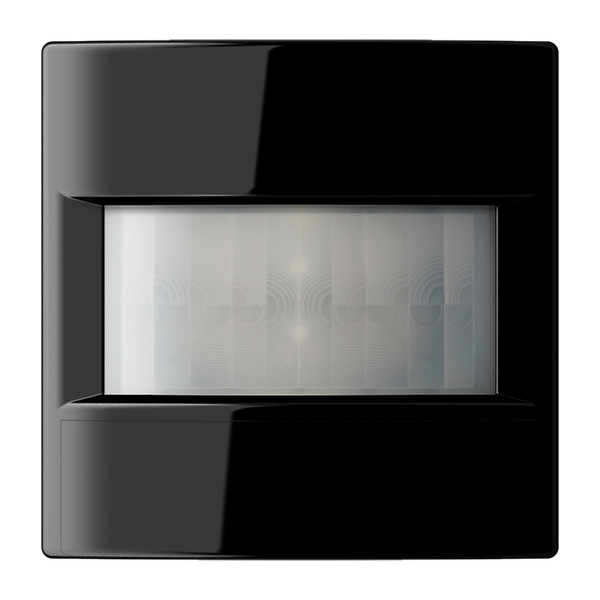

Universal automatic switch 1,10 m LS3181-1SW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
192,07 €
EAN: 4011377155770
MPN: LS3181-1SW
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 1,10 m LS3181-1SW |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | DE |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377155770 |
| Packing level 2 | 4011377155770 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Black |
| Surface protection | Other |
| Creep-under protection | No |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 5 m |
| Material | Plastic |
| Diameter detection range on floor | 10 m |
| Substation input | Yes |
| RAL-number (similar) | 9005 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | Yes |
| Surface finishing | Glossy |
| Detection angle vertical | 6 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
This is a universal automatic switch equipped for integration into power and automation systems, utilizing KNX bus operations.Designed primarily as a movement sensor, it supports staircase monitoring and animal zones with adjustable luminosity response. Flush mounted (plaster) setup required.Black thermoplastic construction with glossy surface finishing matching RAL 9005.Transparent false.Minimum installation box depth 0 mm.Optimal mounting height specified at 1.1 m.Horizontal detection angle spans from 0° to 180°.Vertical detection angle locked at 6°.Maximum frontal transmission range 8 m;sideways range 5 m;floor detection diameter reaches up to 10 m. Switch-on time minimum set at 10 s, maximum duty cycle is undefined but includes self-learning switch-off delay functionality with teach-in adjustments for luminosity levels if needed.Includes operation mode switching and one active channel supporting the KNX system explicitly (supports no other bus systems), lacking bidirectional or radio features entirely while not having its own bus connection output. Creep-under protection:disabled by design, ensuring minimal false trigger risks in specific scenarios not addressing animal zone concerns directly.
