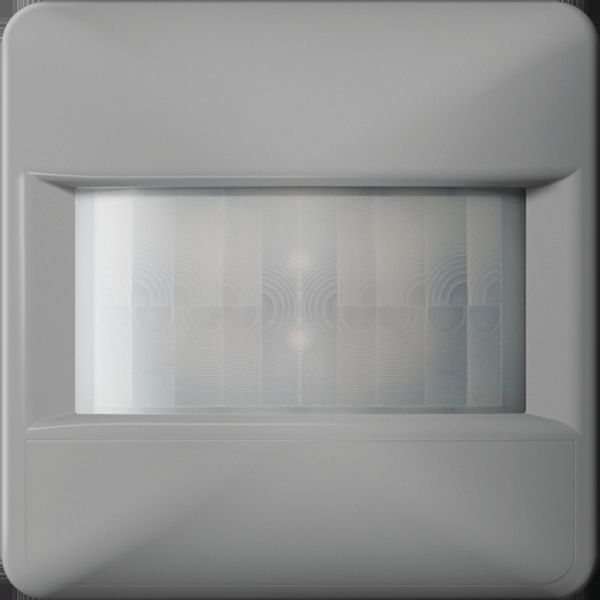

Universal automatic switch 1,10 m CD3181-1GR
Order only
Price (excl. VAT):
197,87 €
EAN: 4011377155718
MPN: CD3181-1GR
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Universal automatic switch 1,10 m CD3181-1GR |
| Brand | Jung |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9031 8080 00 |
| Model | Movement sensor |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | No |
| Bus system LON | No |
| Bus system KNX radio | No |
Packing details
| Packing level 1 | 4011377155718 |
| Packing level 2 | 4011377155718 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Grey |
| Surface protection | Other |
| Creep-under protection | No |
| Number of channels | 1 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Switching power | 0 W |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 5 m |
| Material | Plastic |
| Diameter detection range on floor | 10 m |
| Substation input | Yes |
| RAL-number (similar) | 7038 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | Yes |
| Transparent | No |
| Animal zone | Yes |
| Surface finishing | Glossy |
| Detection angle vertical | 6 ° |
| Detection angle horizontal | 0-180 ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 0 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | Yes |
| Optimum mounting height | 1.1 m |
| Min. depth of built-in installation box | 0 mm |
Description
Designed for automated movement detection and control in integrated systems, this device functions as a KNX-compatible motion sensor with precise luminosity response adjustments.Capable of supporting staircase monitoring with sideways transmission up to 5 m and frontal range at 8 m, it operates effectively within optimized mounting heights of 1.1 m. Flush mounted (plaster).Built-in installation box:min depth 0 mm.Material:Plastic, thermoplastic.Grey finish;glossy surface finishing.Surface protection Other.RAL approximation number 7038.Model:Movement Sensor CD3181-1GR.Detection angle horizontal:[0°, 180°].Vertical angle:[6°,6°].Detection floor diameter range 10 m max. Response value luminosity adjustable true;includes teach-function for learned luminosity responses during runtime switch-offs and delays self-learning activation mechanisms embedded via operation mode switching controls active through single-channel pathways managed through the system bus KNX inputs/output architectures!
