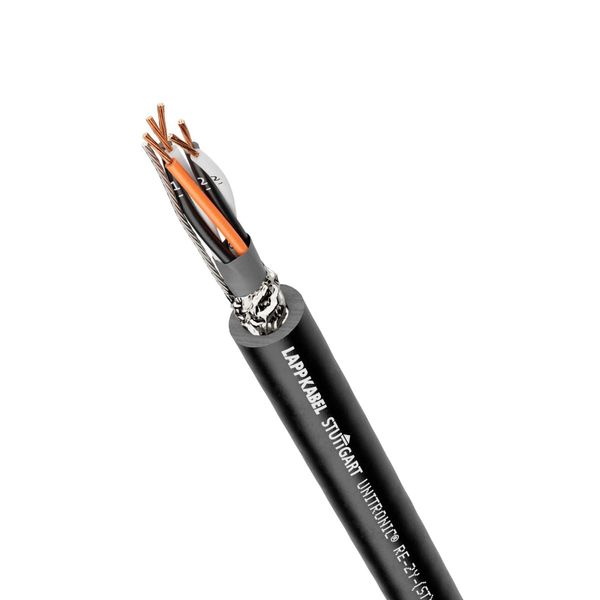

UNITRONIC RE-2Y(ST)YV S 1X2X0,5 BK - 1 MTR
Order only
Minimal order quantity: 100
Price (excl. VAT):
1,67 €
Subtotal: 167,00 €
MOQ: 100
EAN: 4064728548523
MPN: 1032446
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | UNITRONIC RE-2Y(ST)YV S 1X2X0,5 BK - 1 MTR |
| Brand | LAPP |
| Categories |
Cables and wires
|
| Country of origin | DE |
| Harmonized System Code | 8544 4993 00 |
| Nominal cross section conductor | 0.5 mm² |
| Material core insulation | Other |
| Core identification | Colours and numbers |
| Weight | 740 kg/km |
| Drain wire | Yes |
| Nominal voltage U | 300 V |
| Stranding element | Pairs |
| Colour outer sheath | Black |
| Shape of conductor | Round |
| Conductor material | Copper |
| Screen over stranding element | Foil |
| Screen over stranding | Foil |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Conductor category | Class 2 = stranded |
| Armouring/reinforcement | None |
| Permitted cable outer temperature during assembling/handling | -5 °C |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Torsion resistant | No |
| Number of stranding elements | 1 |
| Screen | No |
| Number of cores | 2 |
| Suspension element | None |
| Halogen free according to IEC 60754-2 | No |
| Low smoke according to IEC 61034-2 | No |
| Outer diameter approx. | 7.2 mm |
| With protective conductor | No |
| Oil resistant according to IEC 60811-404 | No |
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Conductor surface | Bare |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | None |
| Reaction-to-fire according to EN 13501-6: Acidity | None |
| Min. permitted bending radius, moving application/free movement | 108 mm |
| Min. permitted bending radius, stationary application/permanent installation | 54 mm |
| Specification core insulation | Polyethylene (PE) |
| Cable geometry | Round |
| Conductor resistance at 20 °C | 39.2 Ohm/km |
| Core identification according to HD 308 S2 | No |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Halogen free according to IEC 60754-1 | No |
| Halogen free according to IEC 60754-3 | No |
Packing details
| Packing level 1 | 4064728548523 |
