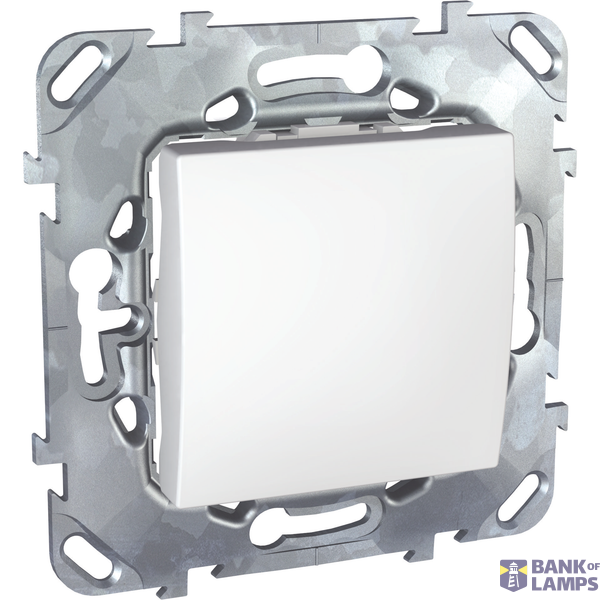

Unica - push-button - 1-way - 10 A 250 VAC - 2 m - white
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Unica - push-button - 1-way - 10 A 250 VAC - 2 m - white |
| Brand | Schneider Electric |
| ETIM | EC001590 |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with adapter plate |
| Method of operation | Rocker/button |
| Rated current | 10 A |
| Type of fastening | Mounting with claw and screw |
| Wiring system | Off switch 1-pole |
| Suitable for degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 8420375137552 |
| Packing level 2 | 8420375137552 |
| Packing level 3 | 3606481954149 |
Other Technical data
| Colour | White |
| Halogen free | Yes |
| With mounting plate | Yes |
| Connection type | Other |
| Illumination | No |
| Surface protection | Untreated |
| Built-in depth | 24 mm |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Type of lighting | Other |
| Material | Plastic |
| Number of rockers | 1 |
| RAL-number (similar) | 9003 |
| Switching current for fluorescent lamps | 0 AX |
| Push button switch | Yes |
| Washing machine switch | No |
| Surface finishing | Glossy |
| Device width | 74.5 mm |
| Device height | 74.5 mm |
| Device depth | 34 mm |
| Label space/information surface | No |
| Function lighting | Other |
| Number of modules (module system) | 2 |
| Min. depth of built-in installation box | 30 mm |
