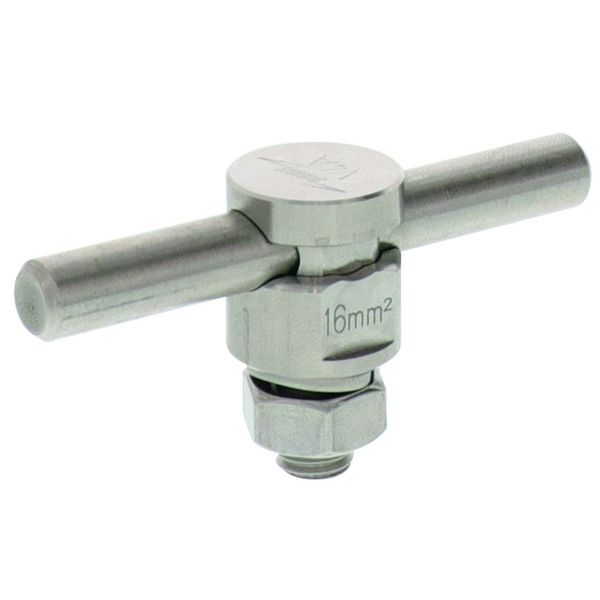

UNI KS connector StSt(V4A)for Rd. 6-10 or 16-50mm² stranded

Order only

Price (excl. VAT):

15,69 €

This price is valid until 24.12.25

EAN: 4013364379930

MPN: 540122

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	UNI KS connector StSt(V4A)for Rd. 6-10 or 16-50mm² stranded
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of fastening screws	Clamp screw
Material	Stainless steel V4A
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	6-10 mm

Packing details

Packing level 1

4013364379930, 4013364379930

Other Technical data

Type of connector

Connector

Downloads

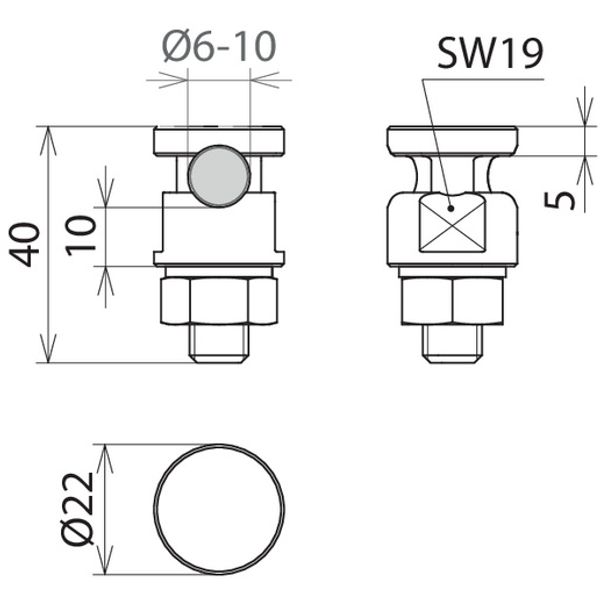

Product data sheet Dimensioned drawing

Description

Clamping screw connector according to DIN EN 62561-1, for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system. One-piece version StSt (V4A) with screw, nut M10 and guide with wrench flat.
