ULTRASOON RVS M30 SN=1M U ANA
In stock: No
Vendor stock: No
Minimal order quantity: 1
Discontinued
Price (excl. VAT):
338,72 €
EAN: 3389118031357
MPN: XX930S1A1M12
Package: 1
Estimate delivery time at our warehouse (approx.):
8-10 weeks
Technical Information
| Item condition | New |
| Manufacture name | ULTRASOON RVS M30 SN=1M U ANA |
| Brand | Telemecanique |
| Categories |
Sensors
|
| Country of origin | US |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | DC |
| Max. output current | 0 mA |
| Housing material | Stainless steel |
| Ambient temperature | 0-50 °C |
| Switching frequency | 0 Hz |
| Type of analogy output | 0 V ... 10 V |
| Type of electric connection | Connector M12 |
| Type of switching output | Other |
| Type of switch function | Other |
| Blind zone | 51 mm |
| Setting procedure | Teach-In |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cylinder, screw-thread |
| Standard for interfaces | Analogue |
| No-load current | 60 mA |
| Relative linearity deflection | 0 % |
| Relative repeat accuracy | 0.9 % |
| Synchronization possible | No |
| Supply voltage | 15-24 V |
| Material active area of sensor | Plastic |
| Material of cable sheath | Other |
| AWG-number | 0 |
| Width sensor | 35 mm |
| Diameter sensor | 30 mm |
| Height of sensor | 35 mm |
| Length of sensor | 85 mm |
| Adjustable distance | 51-991 mm |
| Measuring range length | 51-991 mm |
Packing details
| Packing level 1 | 3389118031357 |
Description

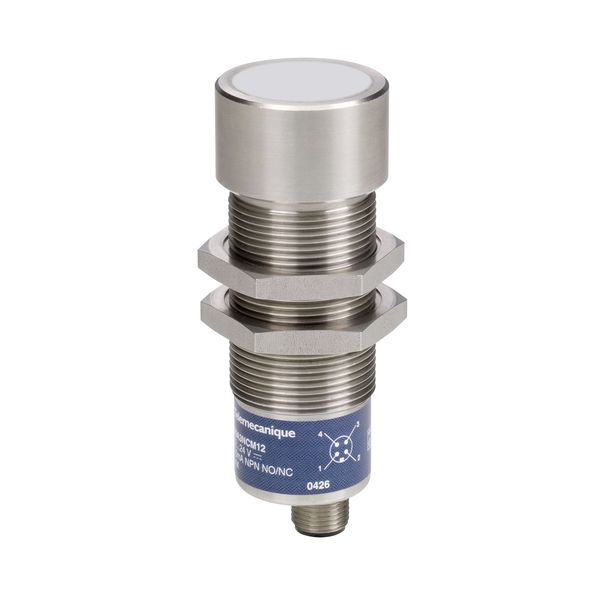

This cylindrical ultrasonic sensor has a stainless steel 303 case. It has a supply voltage of 15V to 24V DC and an analog ouput of 0V to 10 V. This cylindrical ultrasonic distance sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. Stainless steel case makes it ideal for high hygiene environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP65 protection makes this product ready for the harshest environments. It can operate in hot environments up to +50°C. It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant.
Replaced by
In stock: No
Telemecanique
ULTRASON SENSOR M30 SN=1M SS316L 0-10V
208,82 €
EAN: 3389119644679
MPN: XXS30S1VM12
Package: 1
