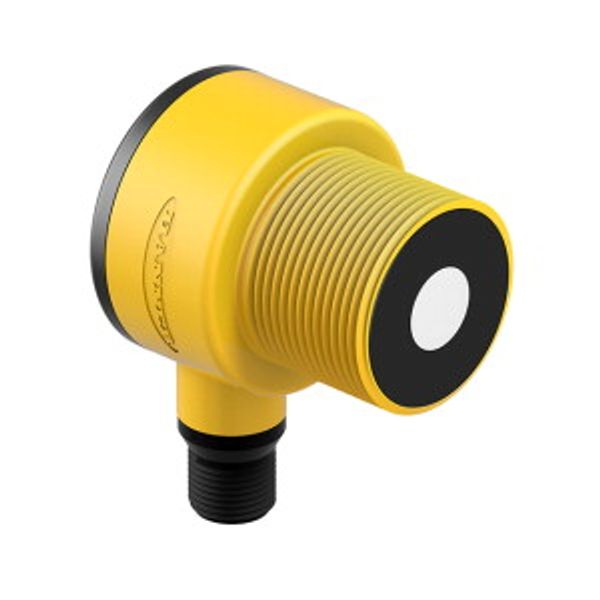

Ultrasonic Sensor diffuse mode sensor T30UDPAQ-CRFV

Name: Ultrasonic Sensor diffuse mode sensor T30UDPAQ-CRFV
Brand: Banner
Price: 1159.960 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

1 159,96 €

This price is valid until 24.12.25

EAN: 0662488805739

MPN: 3080573

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Ultrasonic Sensor diffuse mode sensor T30UDPAQ-CRFV
Brand	Banner
Categories	Proximity Sensors
Country of origin	CN
Harmonized System Code	8536 5019 00
Housing material	Plastic
Type of electric connection	Plug-in connection
Construction type housing	Cuboid
Supply voltage	12 V
Measuring range length	150 mm

Packing details

Packing level 1

0662488805739, 0662488805739

Other Technical data

Ambient temperature	-20 °C
Switching frequency	20 Hz
Type of switching output	PNP
Type of switch function	Normally open contact (NO)
Synchronization possible	No
Material active area of sensor	Plastic
Material of cable sheath	Polyvinyl chloride (PVC)

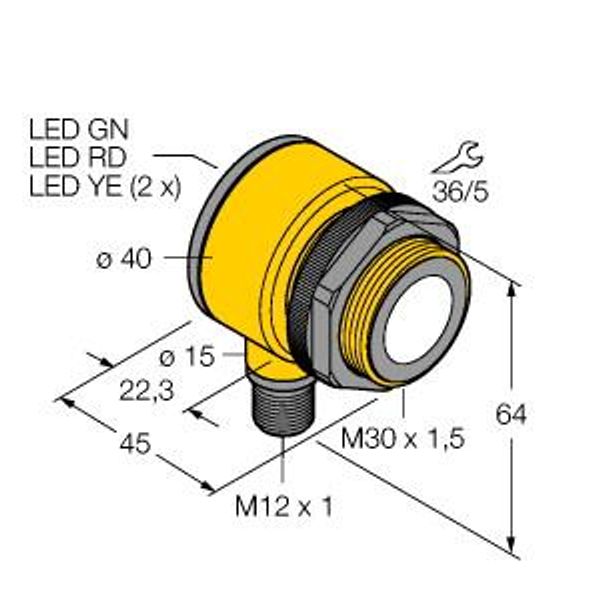

Diameter sensor	40 mm
Length of sensor	45 mm

Downloads

Product data sheet

Description

Ultrasoonsensor, diffuse sensor, Met schakeluitgangen, Bedrijfsspanning 12…24 VDC, max. reikwijdte 500 mm, compacte bouwvorm, aansluiting via M12 x 1 connector, bedrijfsspanning 12…24 VDC, twee pnp-transistoruitgangen, Twee onafhankelijke schakelbereiken instelbaar met drukknop of stuurleiding, dode zone: 15 cm, reikwijdte: 100 cm
