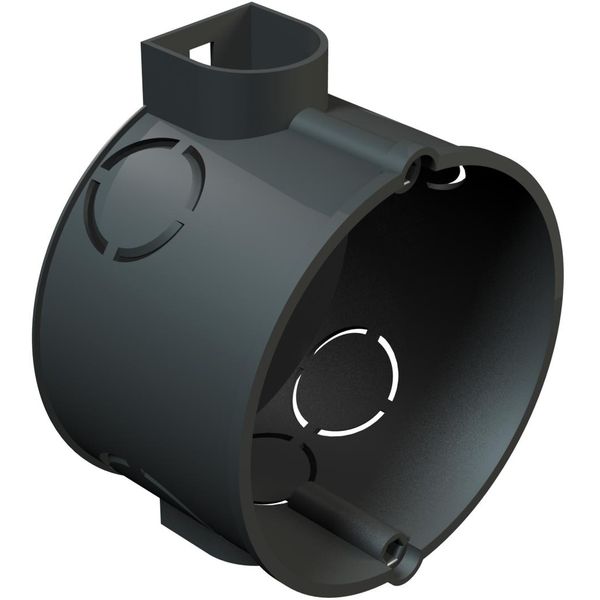

UG 60 D Box, empty concealed ¨60mm, H40mm
In stock: No
Vendor stock: No
Minimal order quantity: 25
Price (excl. VAT):
0,161 €
Subtotal: 4,02 €
MOQ: 25
EAN: 4012195000204
MPN: 2003015
Box: 25
Pallet: 2400
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | UG 60 D Box, empty concealed ¨60mm, H40mm |
| Brand | OBO Bettermann |
| Categories |
Flush Mounted Junction Boxes
|
| Country of origin | HU |
| Harmonized System Code | 3925 9080 00 |
| Mounting method | Flush mounted (plaster) |
| Model | Single |
| Shape | Round |
| Equipped with | None |
| Connectable | No |
| Degree of protection (IP) | IP20 |
| Provided with revolving ring | No |
Packing details
| Packing level 1 | 4012195000211 |
| Packing level 2 | 4012195354840 |
| Packing level 3 | 4012197032814 |
Other Technical data
| Colour | Black |
| Width | 0 mm |
| Halogen free | Yes |
| Surface protection | Untreated |
| Diameter | 60 mm |
| Construction type | Built-in installation box (device box) |
| Inner depth | 0 mm |
| Length | 0 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 7 |
| Mounting switching equipment | Screw or spread out |
| Cover attachment | Other |
| For number of electric fittings | 1 |
| Luminaire hook mounting | No |
| Max. conductor cross section | 0 mm² |
| With screening | No |
| With nail lugs | No |
| With screws | No |
| Air tight | No |
| Depth | 40 mm |
| For tube diameter | 20/25 mm |
| Inlet from the rear | No |
| Pipe locking | No |
| Clamp position fixed | No |
| Number of poles of the clamp | 0 |
| Nozzle | Tunnel branch pipe |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 0 |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Downloads
Description
Ierīču kārba ar aizsardzību pret pārāk stipru pievilkšanu un garantētu, standartam atbilstošu kombinācijas attālumu 71 mm (atb. DIN 49 073-1 ) ar Snap fiksēšanas savienojumu. 7 izlaužamas atveres vadiem un caurulēm ar diametru Ø 20 mm un Ø 25 mm. Kombinējami spraišļu un skrūvsavienojumam, dziļi ievietojami apmetuma turētāji, ierīces skrūvju attālums 60 mm, ar 3,2 mm pašiegriezošām skrūvēm piestiprināmam skrūvējamam stiprinājumam, ar 2 skrūvju kupoliem bez skrūvēm, aizsardzības klase IP20.
