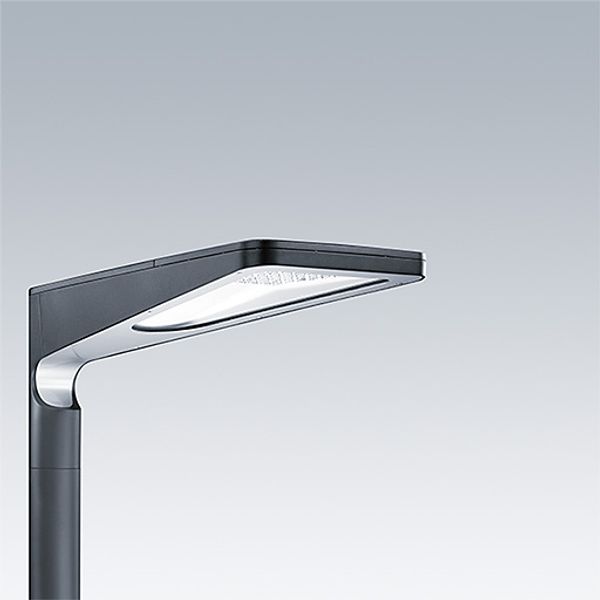

UA 36L50-740 NR CL1 T60E ANT - LED road lighting lantern
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 3607640630702
MPN: 96671792
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | UA 36L50-740 NR CL1 T60E ANT - LED road lighting lantern |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | FR |
| Harmonized System Code | 9405 4210 00 |
| Width | 336 mm |
| Colour rendering index CRI | 70-79 |
| Length | 738 mm |
| Height/depth | 345 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK09 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 55 W |
| Rated luminous flux according to IEC 62722-2-1 | 8038 lm |
Packing details
| Packing level 1 | 3607640630702, 3607640630702 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
Downloads
Description
A small size LED urban street lighting lantern with 36 LEDs driven at 500mA with narrow road optic. Electronic, fixed output control gear. Class I electrical, IP66, Impact strength: IK09. Body: die-cast aluminium (EN AC-44300), textured anthracite. Cover: tempered flat clear glass. Fixings: stainless steel with anti-galvanic treatment. Post top mounting to Ø60mm column. Complete with 4000K LED.
Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.
Dimensions: 738 x 336 x 345 mm
Luminaire input power: 55 W
Weight: 10.5 kg
Scx: 0.08 m²
