U-Bolt Clamp Steel/bare for D 16-48mm, for Round Conductor 10mm and Flat Conductor 30-40mm, Conductor Diameter 6-10mm

Order only

EAN: 4013364124455

MPN: 308045

Package: 1

Price (excl. VAT)

21,12 €

per unit

MOQ: 1

EDT to our warehouse: 1-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	U-bolt clamp St/bare f. D 16-48mm f. Rd 10mm a. Fl 30-40mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
ETIM	EC000514
Surface protection	Untreated
Type of fastening screws	Other
Material	Steel
Lightning current load-bearing capacity (10/350 µs)	16 kA
Diameter round conductor 1	16-48 mm
Width flat conductor 1	30 mm

Packing level 1

4013364124455, 4013364124455

Type of connector	Parallel connector
Diameter round conductor 2	6-10 mm

Product data sheet Dimensioned drawing

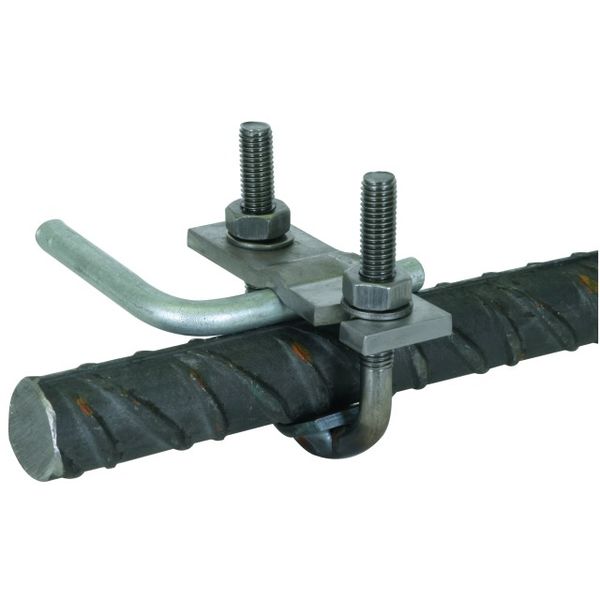

U-bolt clamp according to EN 62561-1, for connecting reinforcing steel with round or flat conductors. Design for large diameters D16-48mm.
