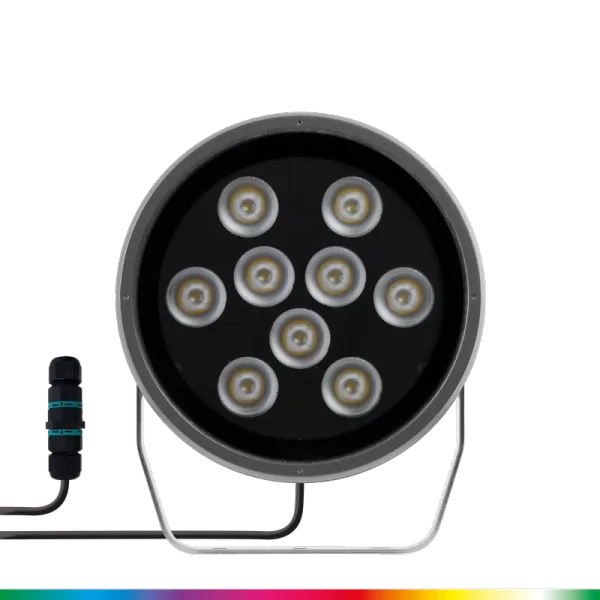

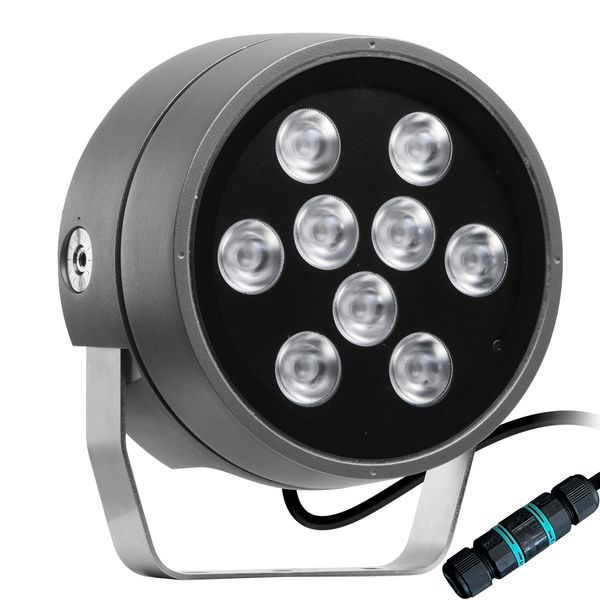

TYK+ 20 40 C/M RGBW DMX ANTHRACITE

Name: TYK+ 20 40 C/M RGBW DMX ANTHRACITE
Brand: Performance in Lighting
Price: 1289.240 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

1 289,24 €

This price is valid until 24.12.25

EAN: 8018367710823

MPN: 3112196

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	TYK+ 20 40 C/M RGBW DMX ANTHRACITE
Brand	Performance in Lighting
Categories	Wall mounting lamps
Country of origin	IT
Harmonized System Code	9405 4210 00

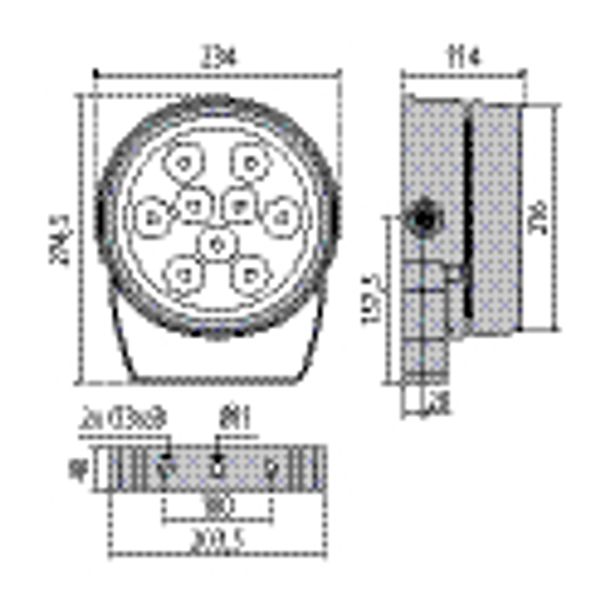

Width	234 mm
Colour rendering index CRI	80-89
Length	274.5 mm
Height/depth	114 mm
Lamp type	LED not exchangeable
Impact strength	IK07
Nominal voltage	48 V

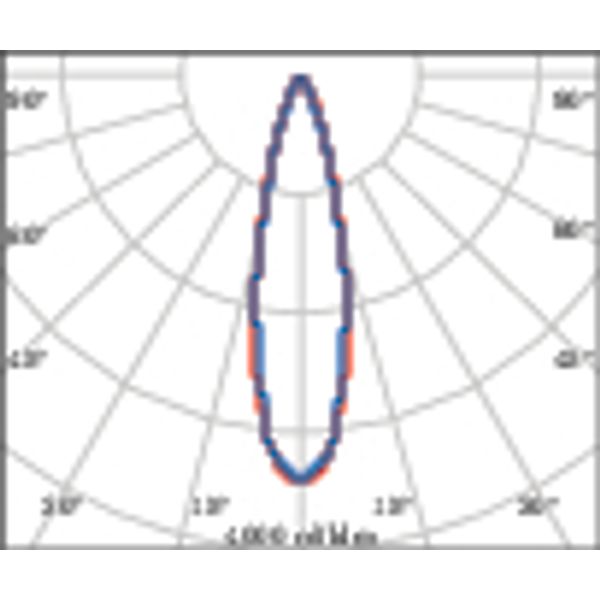

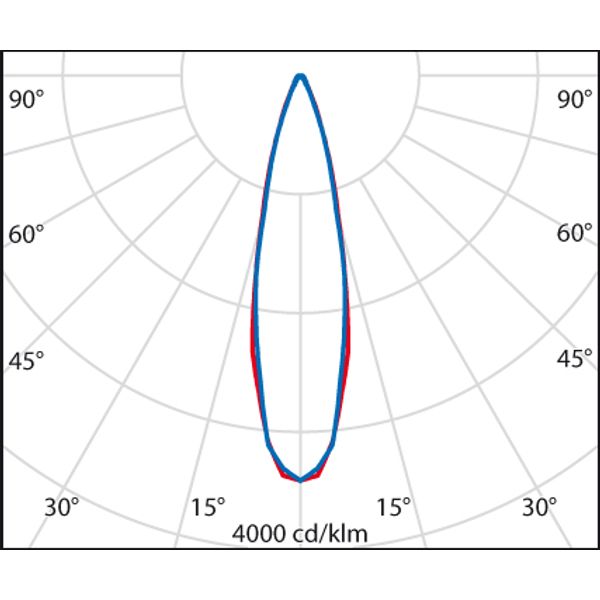

Beam angle	Medium beam 21-40°
Colour temperature	4000 K
Max. system power	42 W

Packing details

Packing level 1

8018367710823, 8018367710823

Other Technical data

Protection class	III
Reflector	None
Lamp holder	None
Connection type	Push-in clamp
Colour housing	Grey
Surface protection	Powder coating
Voltage type	DC
With movement sensor	No
Suitable for lamp power	40 W
Type of control gear	LED operating device current-controlled
Suitable for wall mounting	Yes
With light sensor	No
Suitable for suspended mounting	No
Number of poles	5
Housing material	Aluminium
Light outlet	Direct
Light sharing	Symmetric
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	Yes
Covering of the luminaire with thermally insulating material possible	No
Suitable for number of lamps	1
Suitable for built-in mounting	No
With control gear	Yes
Suitable for workplace according to EN 12464-1	No
Suitable for surface mounting	Yes
Surface brushed	No
Nominal current	782
Colour of light	RGBW
Adjustability	Rotating and swivelling
Suitable for traverse mounting	No
Suitable for pedestal/floor mounting	Yes
Suitable for light-track mounting	No
Suitable for clamp-mounting	No
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Ending
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG1
Rated ambient temperature according to IEC62722-2-1	-20 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	Yes
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
Light distributor	Diffuser lens/optic/panel
Suitable for low voltage cable system	Yes
Dimming DSI	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)	80 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	72.5 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)	52 %
Stroboscope effect value SVM	0
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	Yes
Suitable for ceiling mounting	Yes

Downloads

Mounting instruction Product data sheet

Description

LED schijnwerper voor binnen en buiten bestaande uit: Behuizing van de armatuur bestaande uit twee aparte compartimenten, die zorgen voor maximale dissipatie van de warmte afkomstig van de elektronische onderdelen en LED's, vervaardigd in spuitgietaluminium, gelakt met polyester ISO 9227. Afscherming van vlak, gehard, extrahelder glas, aan de binnenkant bedrukt. De afscherming is onlosmakelijk verbonden met de behuizing met een siliconenpakking bestand tegen hoge temperaturen. Optische groep bestaande uit lenzen van technopolymeer met zeer hoge licht-doorgave. Pakking van slijtvast siliconen, met zeer hoge elastische terugveer-capaciteit. Scheurbestendige kabelklem in vernikkeld messing M20x1.5 voor kabels van Ø 10 mm tot Ø 14 mm. Externe elektrische aansluiting met een waterdichte connector, compleet met kabel. Externe schroeven van roestvrij staal. RVS wandbeugel voor montage aan de muur. Compleet met RVS goniometer met schaalverdeling voor de afstelling van de richting. De RGBW-versies worden gevoed met 48 V gelijkstroom SELV-drivers, die als toebehoren verkrijgbaar zijn. Een DMX interface zorgt voor kleurbeheer. DMX-signaalgenerator voor RGBW versies apart te bestellen.
