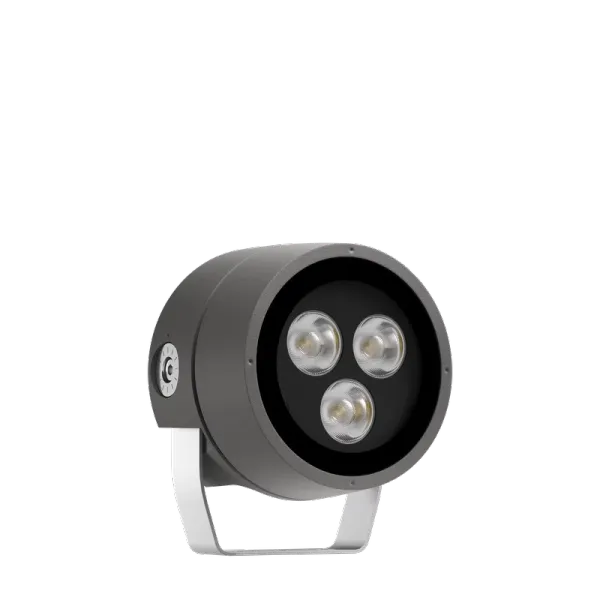

TYK+ 15 25 C/I 840 AN96 DALI

Name: TYK+ 15 25 C/I 840 AN96 DALI
Brand: Performance in Lighting
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 8034035159190

MPN: LTS1603DB840

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	TYK+ 15 25 C/I 840 AN96 DALI
Brand	Performance in Lighting
Categories	Luminaires
Country of origin	IT
Harmonized System Code	9405 4210 00

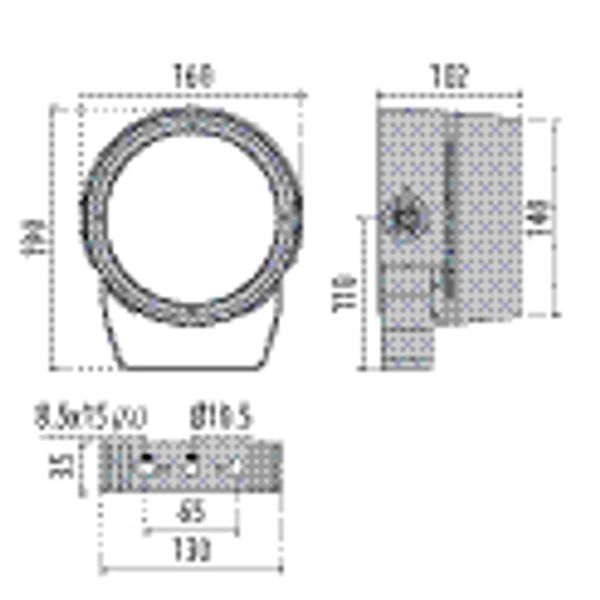

Width	102 mm
Colour rendering index CRI	80-89
Length	160 mm
Height/depth	190 mm
Lamp type	LED exchangeable
Impact strength	IK07
Nominal voltage	36 V
Beam angle	Narrow beam 11 - 20°
Colour temperature	4000 K
Max. system power	24 W

Packing details

Packing level 1

8034035159190, 8034035159190

Other Technical data

Protection class	I
Outer diameter	160 mm
Reflector	Other
Lamp holder	None
Conductor cross section	1.5 mm²
Connection type	Screwed terminal
Colour housing	Anthracite
Surface protection	Powder coating
Voltage type	AC
With movement sensor	No
Suitable for lamp power	22 W
Type of control gear	Electronic ballast
Suitable for wall mounting	No
With light sensor	No
Suitable for suspended mounting	No
Number of poles	5
Housing material	Aluminium
Light outlet	Direct
Light sharing	Symmetric
Material cover	Glass transparent
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	Yes
Covering of the luminaire with thermally insulating material possible	No
Suitable for number of lamps	1
Suitable for built-in mounting	No
With control gear	Yes
Suitable for workplace according to EN 12464-1	No
Suitable for surface mounting	Yes
Connectable conductor cross section	1.5 mm²
Surface brushed	No
Nominal current	600
Colour of light	White
Adjustability	Rotating and swivelling
Suitable for traverse mounting	No
Suitable for pedestal/floor mounting	No
Suitable for light-track mounting	No
Suitable for clamp-mounting	No
Constant light output (CLO)	No
IFTTT support available	No
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	209000 h
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG1
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC62722-2-1	-20 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	Yes
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
Light distributor	Focal lens
Suitable for low voltage cable system	No
Dimming DSI	No
Unified Glare Ratio (UGR)	13.3
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	40
Max. number of luminaires per miniature circuit breaker B16	30
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)	93.7 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	91.4 %
Dimming DALI-2	Yes
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	Yes
Suitable for ceiling mounting	Yes
Power factor	0.9

Downloads

Product data sheet Mounting instruction

Description

LED schijnwerper voor binnen en buiten bestaande uit: Behuizing van de armatuur bestaande uit twee aparte compartimenten, die zorgen voor maximale dissipatie van de warmte afkomstig van de elektronische onderdelen en LED's, vervaardigd in spuitgietaluminium, gelakt met polyester ISO 9227/12944 - ISO 9223 (C5). Afscherming van vlak, gehard, extrahelder glas, aan de binnenkant bedrukt. De afscherming is onlosmakelijk verbonden met de behuizing met een siliconenpakking bestand tegen hoge temperaturen. Optische groep bestaande uit lenzen van technopolymeer met zeer hoge licht-doorgave. Optiekgroep speciaal voor architectonische verlichting ontworpen; de combinatie van intern ontwikkelde optieken en lichtbronnen zorgt voor een nauwkeurige lichtverdeling zonder kleuraberratie. Pakking van slijtvast siliconen, met zeer hoge elastische terugveer-capaciteit. Scheurbestendige kabelklem in vernikkeld messing M20x1.5 voor kabels van Ø 10 mm tot Ø 14 mm. Schroeven van roestvrij staal. RVS wandbeugel voor montage aan de muur. Compleet met RVS goniometer met schaalverdeling voor de afstelling van de richting. De accessoire ronde lichtafscherming is compatibel met de versies met een concentrerende C/I lens. Dimmen (DALI).
