TX-MOVE, 35...68 W, 5500...9700 lm, 830, silver, DALI Recessed project
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
391,39 €
EAN: 4051859935391
MPN: 901736.004.76
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TX-MOVE, 35...68 W, 5500...9700 lm, 830, silver, DALI Recessed project |
| Brand | RZB |
| Categories |
Recessed lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

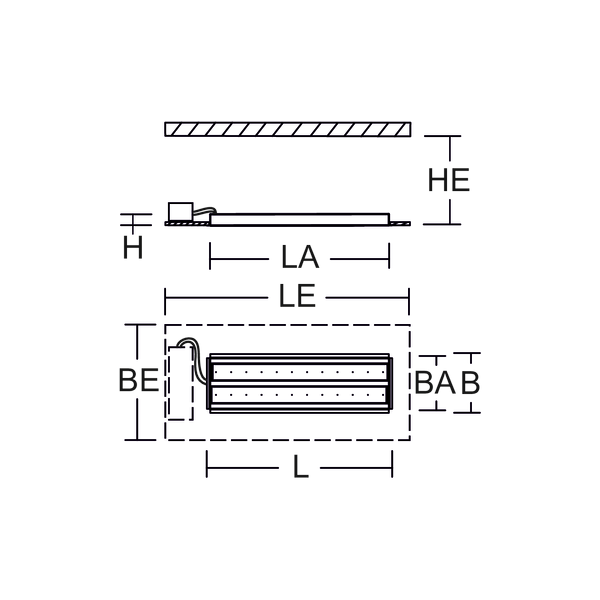

| Width | 190 mm |
| Colour rendering index CRI | 80-89 |
| Length | 622 mm |
| Height/depth | 39 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 3000 K |
| Max. system power | 68 W |
| Rated luminous flux according to IEC 62722-2-1 | 5500 lm |
| Luminaire efficacy | 158 lm/W |
Packing details
| Packing level 1 | 4051859935391, 4051859935391 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | Silver |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 35-68 W |
| Type of control gear | Electronic ballast |
| Suitable for wall mounting | No |
| Built-in width | 174 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 5 |
| Built-in length | 602 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Other |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 2 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Nominal current | 146-159 |
| Colour of light | White |
| Adjustability | Swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 5500 lm |
| Type of wiring | Suitable for through wiring |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | 5-25 °C |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Focal lens |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 16.7 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 42 |
| Max. number of luminaires per miniature circuit breaker B16 | 25 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 10 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Positions |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 100 mm |
| Power factor | 0.95 |
Downloads
Description

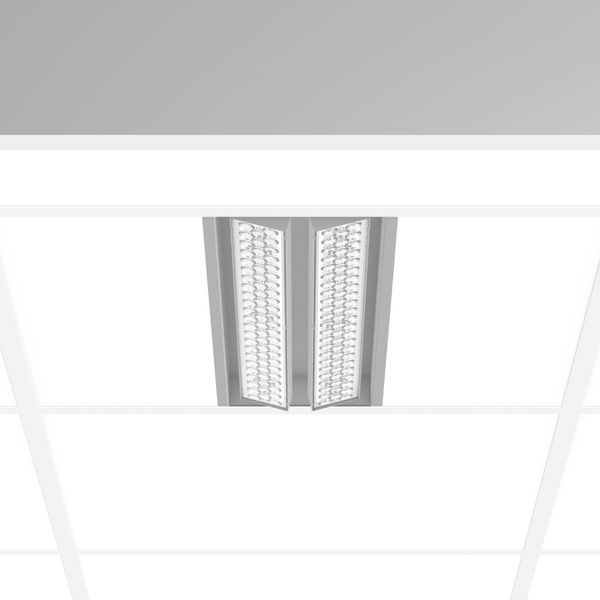

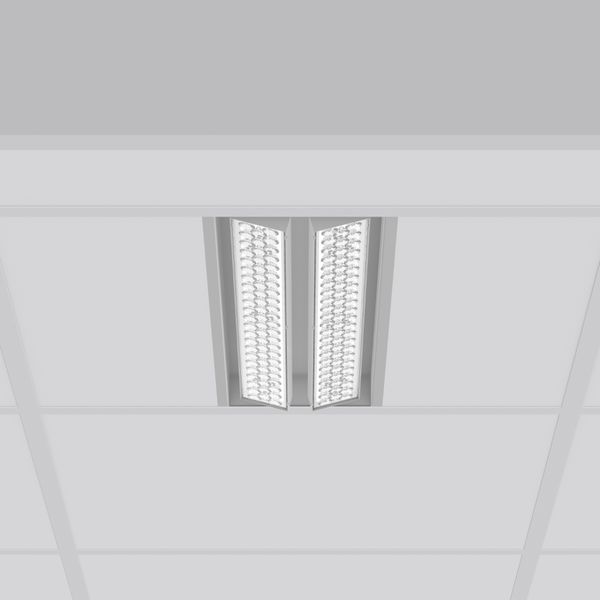

Einlege/Einbau-Flächenstrahler. Housing: sheet steel, powder-coated. 2xSwivel range: 90°. High-efficiency LED units with optimum light control thanks to clear plastic (PC) lens optics. Spezielle Mikrostrukturen reduzieren Gelbsaum. Symmetrical light distribution. Suitable for laying in grid ceiling module 625. Connected converter included in separate gearbox. Suitable for through-wiring. MultiLumen: Luminous flux adjustable in 3 steps. Accessories: Mounting frame for installation in suspended ceilings. Environmentally friendly and resource-saving due to replaceable and recyclable components.
