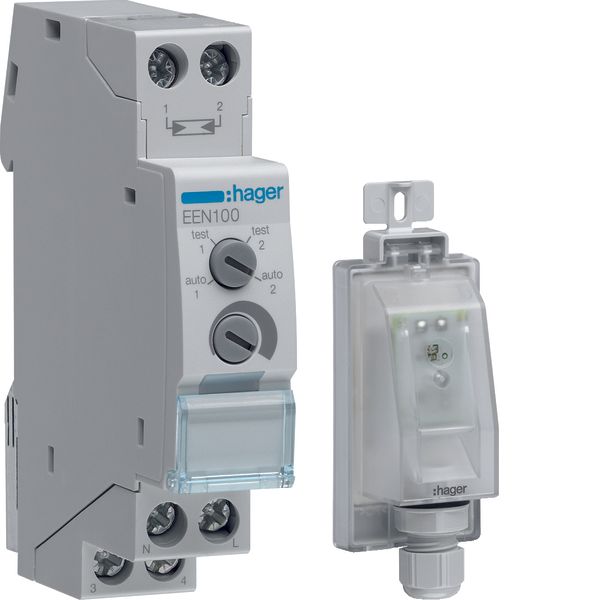

Twilight switch 1channel, 1M

Name: Twilight switch 1channel, 1M
Brand: Hager
Price: 111.354 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

111,354 € per pcs

This price is valid until 31.12.25

EAN: 3250617579308

MPN: EEN100

Package: 1

Pallet: 504

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Twilight switch 1channel, 1M
Brand	Hager
Categories	Assembly Accessories and Parts
Harmonized System Code	8536 5080 00
Mounting method	DIN rail
Rated voltage	230 V
Width in number of modular spacings	1
Degree of protection (IP)	IP20
Adjustment range brightness value	5-2000 lx

Built-in depth	17.8 mm
Rated frequency	50-60 Hz
Rated voltage light sensor	230 V
Max. switching current (cos phi = 0.6)	10 A
Max. incandescent lamp load	2300 W
Max. conductor length light sensor	100 m
Max. load fluorescent lamp	1000 VA
Max. load fluorescent lamp (Duo circuit)	1000 VA
Max. load fluorescent lamp (parallel compensated)	1000 VA
With programmable overnight shutoff	No
Degree of protection (IP) light sensor	IP55
Push button input	No
Rated switch current	10 A
Protection class light sensor	II
Mounting method light sensor	Other
