TUBILUX XT 8500-840 PM L1260 EVG - Tube Luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 200,77 €
EAN: 5037319475743
MPN: 42186403
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TUBILUX XT 8500-840 PM L1260 EVG - Tube Luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin | DE |
| Harmonized System Code | 9405 4231 00 |
| Width | 105 mm |
| Colour housing | Other |
| Colour rendering index CRI | 80-89 |
| Length | 90 mm |
| Height/depth | 1260 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP69K |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 67 W |
| Rated luminous flux according to IEC 62722-2-1 | 8500 lm |
| Luminaire efficacy | 127 lm/W |
Packing details
| Packing level 1 | 5037319475743, 5037319475743 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 86000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Rated ambient temperature according to IEC62722-2-1 | -30-45 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 24 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 44 |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Flickering value Pst LM | 0.04 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.97 |
Downloads
Description

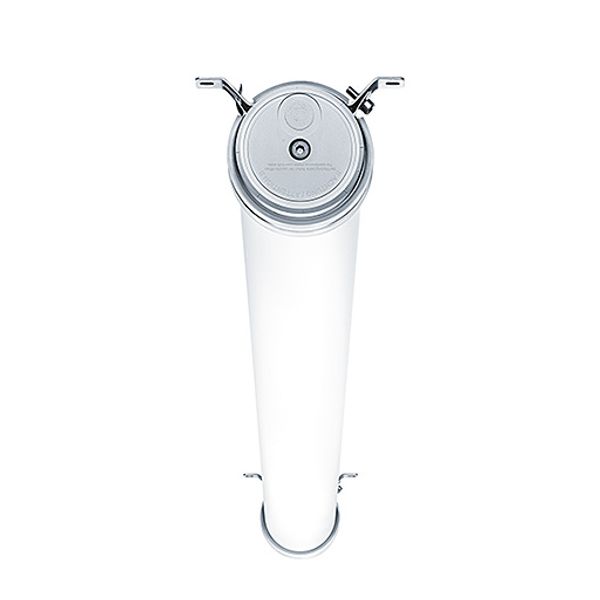

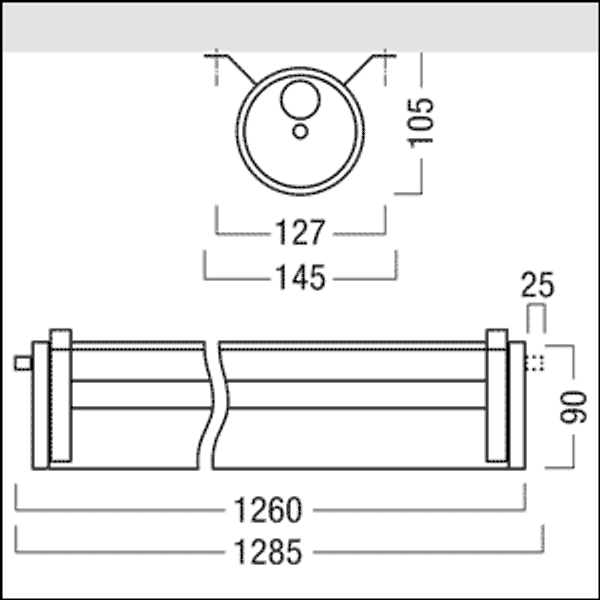

Tube Luminaire with ø 90 mm, Luminaire luminous flux: 8500 lm, Luminaire efficacy: 127 lm/W. Colour rendering Ra > 80, colour temperature 4000 K. Luminaire input power: 67 W, with LED converter; LED service life lasts 58000 h before luminous flux is reduced to 80% of the initial value. Chromaticity tolerance (initial MacAdam): 3. suitable for ceiling mounting and horizontal or vertical wall mounting. Approved for indoor use and in unprotected outdoor areas. ambient temperature: -30°C to +45°C. Housing of impact-resistant (IK08) polymethylmethacrylate, satin, and end caps of polyamide (PA). Age-resistant silicon seal (SI). Gear tray of double coated sheet steel, white. Flexible mounting with stainless steel fixing clips. Electrical connection via cable gland with integrated pressure equalisation element and plug connection terminal. IFS/BRC-compliant.. Luminaire wired with halogen-free leads. IPX9K. SC1. Dimensions: Ø90 x 1260 mm weight: 3.6 kg.
