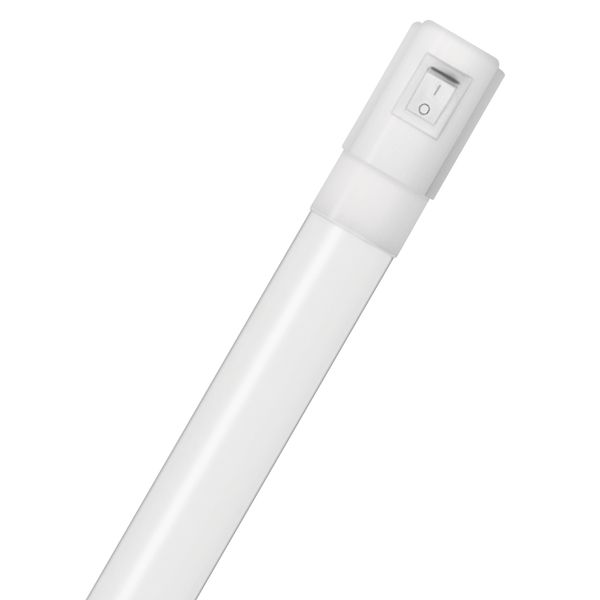

TubeKIT™ 1200mm 19W 4000K
In stock: No
Vendor stock: Yes
Minimal order quantity: 1
Price (excl. VAT):
16,22 €
Split box: 10,00 €
EAN: 4058075265059
MPN: 4058075265059
Package: 1
Box: 8
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | TubeKIT™ 1200mm 19W 4000K |
| Brand | LEDVANCE |
| Categories |
Batten luminaires
|
| Country of origin | CN |
| Harmonized System Code | 9405 4231 00 |
| Width | 35 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1800 mm |
| Height/depth | 36.5 mm |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 19 W |
| Rated luminous flux according to IEC 62722-2-1 | 1700 lm |
Packing details
| Packing level 1 | 4058075265059 |
| Packing level 2 | 4058075265066 |
| Packing level 3 | 4058075265059 |
Other Technical data
| Protection class | II |
| Lamp holder | G5 |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 19 W |
| Type of control gear | Electronic ballast |
| Diameter | 30 mm |
| With switch | Yes |
| Material | Plastic |
| Electrical connection with connector system | No |
| Suitable for emergency lighting | No |
| Emergency power supply integrated | No |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| With control gear | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| LED nominal current at constant current | 83 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Downloads
Description
Mobile LED batten luminaire. Product features: Durable and energy-saving LED luminaire. Mercury-free and RoHS compliant. Clip-In technology for stationary use and hook for mobile use. Lifetime: up to 30,000 h. Not dimmable. Polycarbonate housing. Uniform illumination. Color temperatures: 3,000 K, 4,000 K. Color rendering index Ra: ≥ 80. Product benefits: Easy to use and multifunctional LED batten luminaire. All required accessories included (screws, dowels, brackets, hook). Ready for connection due to integrated on/off switch and cable with EU-plug. Bright, robust and durable. Energy savings of up to 65 % comp. to luminaires using T8 fluorescent lamps on CCG. Homogeneous light output. Areas of application: Indoor applications. Corridors, entrance areas, stairwells, living rooms, basements. Shelves, furniture integration or under cabinet mounting. Direct or indirect lighting (e.g. cove lighting). Kitchens, workspaces. Equipment / Accessories: Complete mounting and connecting accessories included.
