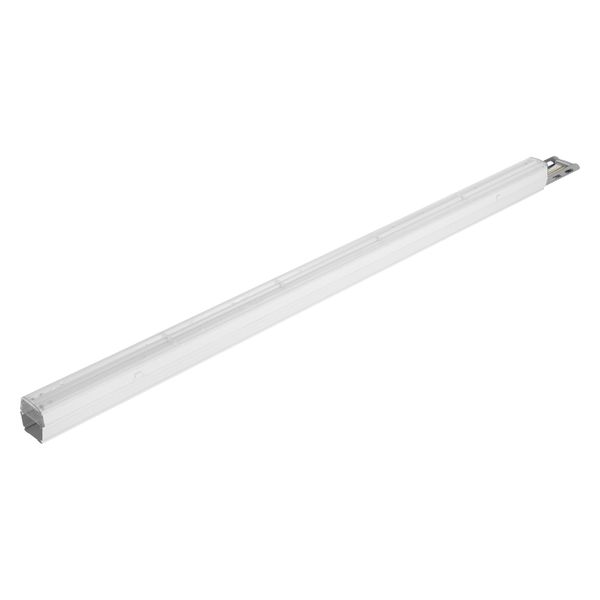

TruSys® PERFORMANCE VERY NARROW 35 W/4000 K

TruSys® PERFORMANCE VERY NARROW 35 W/4000 K image 1

TruSys® PERFORMANCE VERY NARROW 35 W/4000 K image 8

TruSys® PERFORMANCE VERY NARROW 35 W/4000 K image 9

TruSys® PERFORMANCE VERY NARROW 35 W/4000 K image 10

TruSys® PERFORMANCE VERY NARROW 35 W/4000 K

Name: TruSys® PERFORMANCE VERY NARROW 35 W/4000 K
Brand: LEDVANCE
Price: 54.070 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

54,07 €

This price is valid until 16.01.26

Split box: 10,00 €

EAN: 4058075398696

MPN: 4058075398696

Package: 1

Box: 4

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	TruSys® PERFORMANCE VERY NARROW 35 W/4000 K
Brand	LEDVANCE
Categories	Accessories for track lights
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9405 1190 00
Width	66.8 mm
Colour rendering index CRI	80-89
Length	1500 mm
Height/depth	39.4 mm
Lamp type	LED not exchangeable
Nominal voltage	220-240 V
Degree of protection (IP)	IP20
Beam angle	Medium beam 21-40°
Colour temperature	4000 K
Max. system power	35 W
Rated luminous flux according to IEC 62722-2-1	5600 lm
Luminaire efficacy	160 lm/W

Packing details

Packing level 1	4058075398696
Packing level 2	4058075398702
Packing level 3	4058075398696

Other Technical data

Protection class	I
Reflector	None
Lamp holder	None
Connection type	Other
Colour housing	White
Voltage type	AC
Type of control gear	Electronic transformer
Number of poles	2
Housing material	Steel
Suitable for emergency lighting	No
Light outlet	Direct
Light sharing	Symmetric
Emergency power supply integrated	No
With light source	Yes
Suitable for number of lamps	0
With control gear	Yes
Nominal current	190 mA
Colour of light	White
Constant light output (CLO)	No
Type of wiring	Suitable for through wiring
Rated life time L70/B50 at 25 °C	65000 h
Rated life time L80/B10 at 25 °C	60000 h
Colour consistency (McAdam ellipse)	SDCM3
Filament test according to IEC 60695-2-11	650 °C - 30 s
LED nominal current at constant current	190 mA
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming GPRS	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	Yes
Light distributor	Focal lens
Dimming DSI	No
Energy efficiency class of the built-in lamp	A++, A+, A (LED)
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	Positions
Exchangeable control gear	No
Power factor	0.9

Downloads

Others Product data sheet Instructions for use Declaration DOC CE (Declaration of conformity CE)

Description

Luminaire inserts with very narrow light distribution. Product features: Beam angle very narrow: 30°. Click into place solution with smart click buttons. Luminous efficacy: up to 160 lm/W. Fixed luminare taps. Lumen package 5600 lm, 8000 lm, 11200 lm. Steel-sheet housing. Lens material: PMMA. Type of protection: IP20. Common family design with LEDVANCE. Lifetime (L80/B10): up to 60,000 h. Product benefits: Very directed light distribution for high rack warehouses. Easy installation, no tools required for connection. Energy saving and cost-effective. Flexible application due to a range of different lumen packages and beam angles. Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible. Versions with DALI ECG available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Industry halls, high rack warehouse, garages, hardware stores. Equipment / Accessories: Mounting rail with fixed integrated 5- and 8-pole cable.
