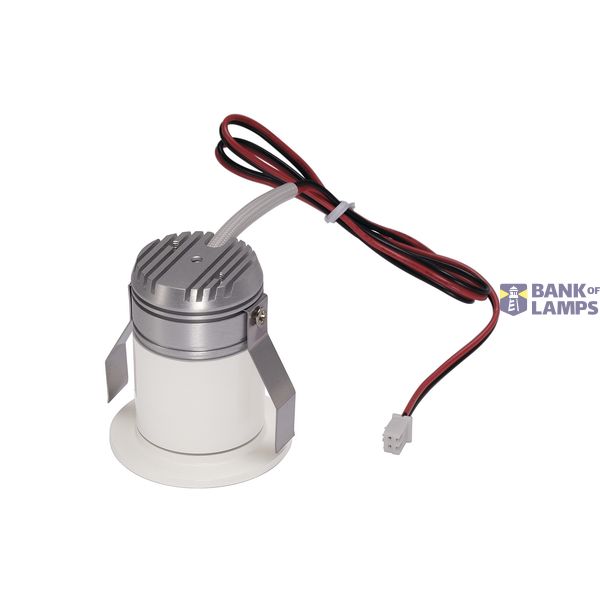

TRITON MINI LED HORN downlight , round, white, 1W LED, warm white
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | TRITON MINI LED HORN downlight , round, white, 1W LED, warm white |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001744 |
| Width | 45 mm |
| Colour rendering index CRI | 90-100 |
| Length | 50 mm |
| Height/depth | 45 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP20 |

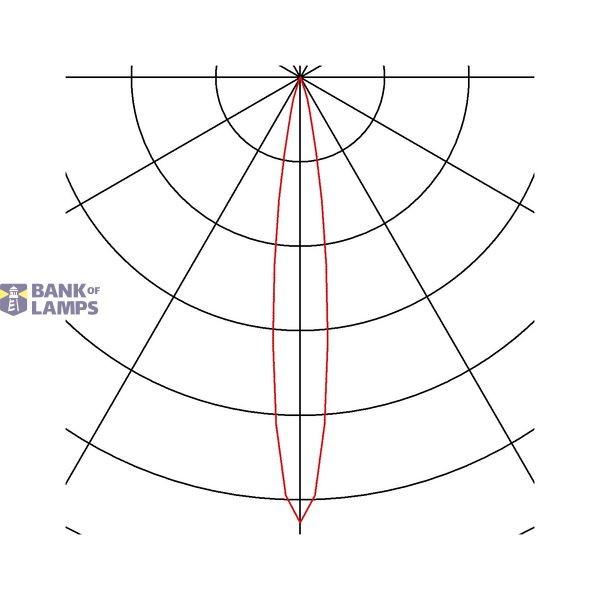

| Beam angle | Parallel beam <5° |
| Colour temperature | 3000 K |
| Max. system power | 0 W |
| Rated luminous flux according to IEC 62722-2-1 | 70 lm |
| Luminaire efficacy | 0 lm/W |
Packing details
| Packing level 1 | 4024163130912 |
Other Technical data
| Protection class | III |
| Outer diameter | 45 mm |
| Reflector | None |
| Lamp holder | Other |
| Conductor cross section | 0 mm² |
| Connection type | Other |
| Colour housing | White |
| Surface protection | Lacquered |
| Voltage type | DC |
| With movement sensor | No |
| Suitable for lamp power | 1 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | Yes |
| Built-in width | 35 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 35 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 70 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| LED nominal current at constant current | 350 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Focal lens |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Built-in diameter | 35 mm |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 65 mm |
| Power factor | 0 |
Downloads
Description
German company SLV - one of the leading European manufacturers of lighting equipment, which includes a proposal of the light bulb, technical, decorative, outdoor and LED lighting. SLV company lamps collection is an example of elegance, rigor and impeccable German quality. A varied assortment will appeal not only for the simple customer , but for professional designers too. The company's SLV motto - «Quality for a reasonable price"" At this moment the company SLV equipment is used at more than 80 countries, at 23 of them company has exclusive representatives. SLV Bulbs are characterized with high luminous efficiency, long life, energy saving, and high quality. Company are constantly searching for new solutions in internal and external lighting creation. This brought to SLV brand worldwide fame and recognition.
Product name: Decorative Lamp SLV TRITON MINI LED HORN downlight, round, white, 1W LED, warm white
Rated luminous flux [Lm]: 90
Luminous efficacy [Lm/W]: 90
D1 [mm]: 45
Product code: 113671
EAN code: 4024163130912
Bruto weight [g]: 121.0
Life time [h]: 30000
Material: Alumīnijs
Color: 1316
