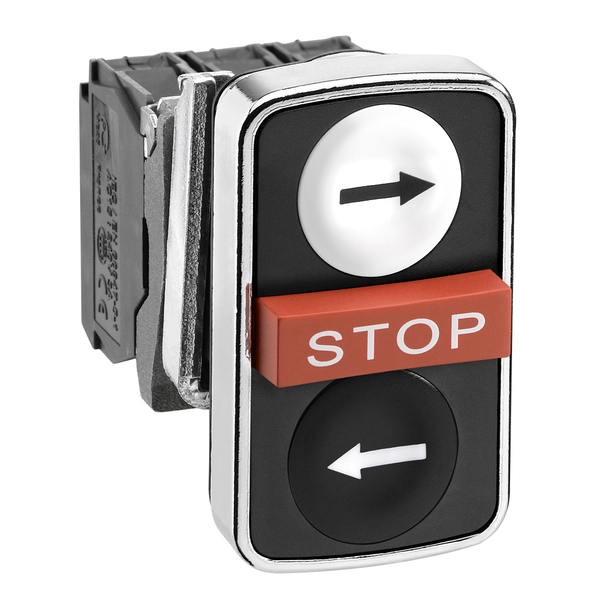

Triple headed push button, Harmony XB4, white flush/red projecting/black flush pushbutton Ø22 mm 1NO+1NC+1 NO

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

34,74 €

This price is valid until 31.12.25

EAN: 3389119603515

MPN: XB4BA711237

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Triple headed push button, Harmony XB4, white flush/red projecting/black flush pushbutton Ø22 mm 1NO+1NC+1 NO
Brand	Schneider Electric
Categories	Push Buttons
Country of origin	FR
Harmonized System Code	8536 5080 00
Colour button	Black/white
Number of command positions	3
Type of button	High
Degree of protection (IP)	Other

Packing details

Packing level 1

3389119603515

Other Technical data

Hole diameter	22.5 mm
Suitable for illumination	No
Spring-return	Yes
Colour front ring	Chrome
Type of electric connection	Screw connection
Width opening	0 mm
Height opening	0 mm
Material front ring	Metal
With front ring	Yes
Construction type lens	Rectangular
Supply voltage lamp	0 V
Switching function latching	No
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	2
Number of contacts as change-over contact	0
Degree of protection (NEMA)	4X

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Declaration DOC CE (Declaration of conformity CE) Technical manual

Description

This Harmony XB4 triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates witha spring return / impulse mechanism. It has a metal bezel. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
