TRIONA square, 41 W, 5800 lm, 840, white, smart+free Pendant luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
1 254,75 €
EAN: 4051859453871
MPN: 312442.002.1.730
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TRIONA square, 41 W, 5800 lm, 840, white, smart+free Pendant luminaire |
| Brand | RZB |
| Categories |
Pendant lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Width | 696 mm |
| Length | 696 mm |
| Height/depth | 52 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 41 W |
| Rated luminous flux according to IEC 62722-2-1 | 5800 lm |
| Luminaire efficacy | 142 lm/W |
Packing details
| Packing level 1 | 4051859453871, 4051859453871 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| Suitable for lamp power | 41 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 3 |
| Housing material | Other |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, structured |
| Pendant length | 500-1200 mm |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 8 |
| With control gear | Yes |
| With suspension | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Nominal current | 171-186 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Degree of protection (NEMA) | Other |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 18.9 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 50 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.95 |
Downloads
Description

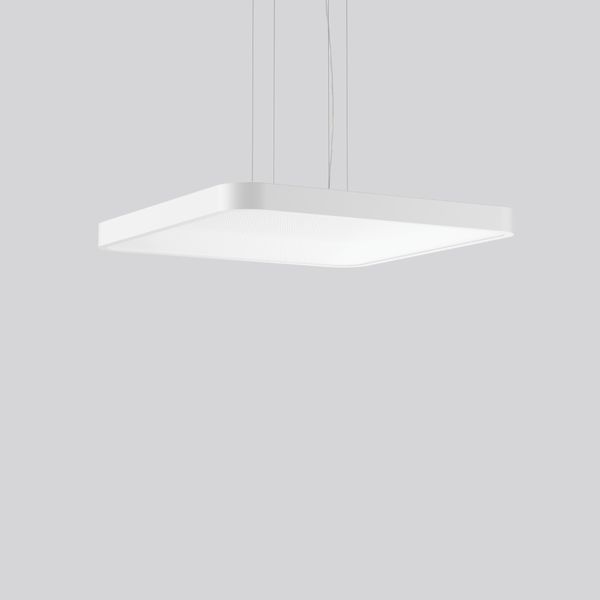

Decorative square LED pendant-mounted surface luminaire. Flat, seamless frame: aluminium extrusion profile, powder coated. Cover made of sheet steel, powder-coated. Canopy made of aluminium, powder-coated. Diffuser made of non-yellowing plastic (PMMA) microprismatic. LED backlight technology for homogeneous illumination of the entire light-emitting surface. 4-point steel cable suspension, steplessly adjustable. Easy installation with transparent, adjustable pendant cable and canopy with magnetic fixing. Driver integrated. Dimmable DALI. Suitable for through-wiring. With Casambi smart+free Bluetooth® control for wireless network and operation using Android / iOS devices, free app available for download.
