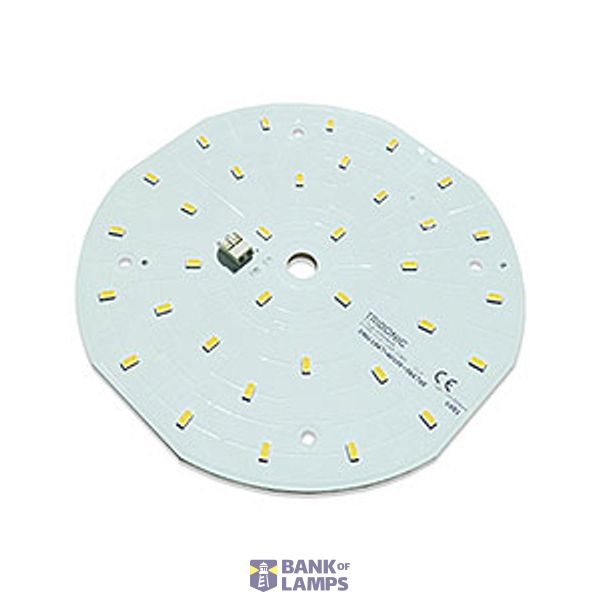

Tridonic CLE-160-2200-840-CLA
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Tridonic CLE-160-2200-840-CLA |
| Brand | Tridonic |
| ETIM | EC000996 |
| Width | 158.5 mm |
| Height | 6.5 mm |
| Diameter | 160 mm |
| Length | 158.5 mm |
| Degree of protection (IP) | IP00 |
| Lamp voltage | 51.4 V |
| Colour temperature | 4000 K |
| Lamp power | 18 W |
| Luminous flux | 2190-2280 lm |
Packing details
| Packing level 1 | 9006210489179, 9006210489179 |
Other Technical data
| Colour | White |
| Shape | Round |
| Flexible | No |
| Connection type | Push-in clamp |
| Voltage type | DC |
| Luminous intensity | 0 cd |
| Suitable for traffic lights | No |
| Suitable for variable road signs | No |
| Suitable for rail traffic | No |
| Suitable for matrix information boards | No |
| Operating voltage | 51.4 V |
| Colour of light according to EN 12464-1 | Neutral white 3300-5300 K |
| Number of LEDs | 34 |
| Average nominal lifespan | 50000 h |
| Suitable for general lighting | Yes |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| Operating current | 350 mA |
| External driver required | Yes |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Photobiological safety according to EN 62471 | RG0 |
| Beam angle | 120 ° |
| Specific luminous efficacy | 122-127 lm/W |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
