Traunsee BV 32/5 2m5G10St63 Red. Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Traunsee BV 32/5 2m5G10St63 Red. Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP44

Packing details

Packing level 1

9003399121289

Other Technical data

Colour	Black
Protection	Overcurrent switch
Housing material	Rubber
Leakage current type	A
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
CEE socket outlet 32 A	1x32A5p400V
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 63 A
Number of poles mains connection	5

Downloads

Product data sheet

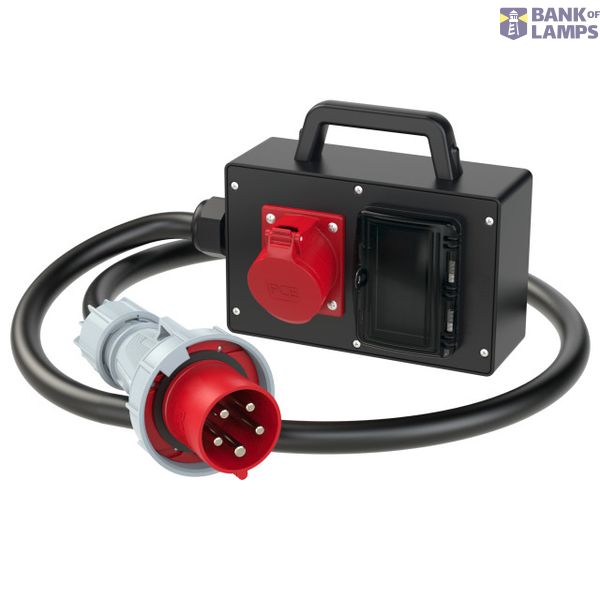

Description

solid rubber distribution box type TRAUNSEE IP54 165x260x90 with handle
2m cable H07RN-F 5G10mm2 black with plug 63A 5p 400V
1xCEE-.socket 32A 5p 400V fused with 1xMCB 32A 3p C
1xRCD 63A/4/0.03A (TYP A 40AT) over all outlets
MCB`s and RCD are Eaton ÖVE / VDE branded
distribution box is ready wired for using
