TRANSPARENT DOOR 5R PACK 160

Order only Not Available

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	TRANSPARENT DOOR 5R PACK 160
Brand	Schneider Electric
Country of origin*	FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Width	550 mm
Height	930 mm
Depth	22 mm
Material	Glass
Degree of protection (IP)	IP40

Packing details

Packing level 1	3303430080954
Packing level 2	3303430080954

Other Technical data

Colour	Other
Model	Panel door
EMC-version	No
Surface finishing	Other
Version as glazed door	Yes
Version as door for disconnecting switch interlocking	No

Downloads

ECOP (Environmental Code of Practice)

Description

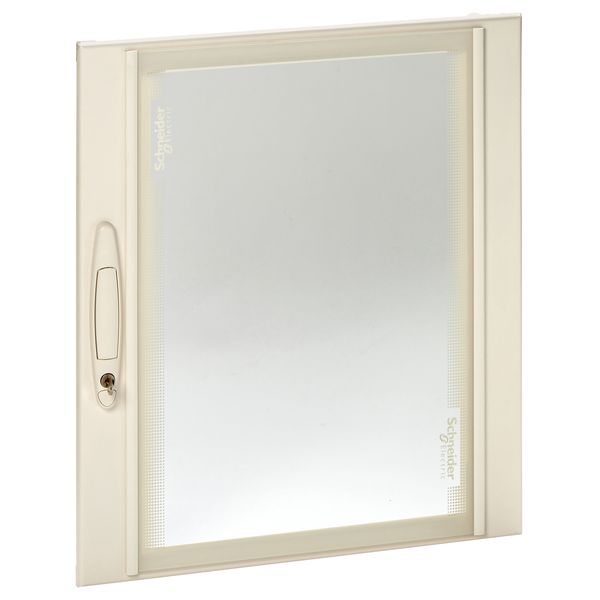

Transparent door Pack 160 for Prisma. It provides door, handle, keylock (key 405), other keylock which inserting to be ordered separately and 2 hinge. It provides electrophoresis treatment and hot-polymerised polyester epoxy powder protective treatment. It provides IP30 degree of protection. It provides IK protection which includes IK08 conforming to EN/IEC 62262. It could be installed in 555 mm width Pack enclosure. It has matt or smooth surface finish and white (RAL 9001) colour. It is suitbale for 18 50-mm vertical modules and 5 horizontal rows. Sold in lots of 1 unit. The door could be reversible opened with 130 ° door opening angle with 1 lock. It provides 24 18-mm modules per row and 120 total number of 18 mm modules. The enclosure material had polyamide handle, glass and treated sheet steel cover frame. It is compliant with both IEC 61439-1 and IEC 61439-2. It is also compliant with Green Premium (RoHS/REACH).
