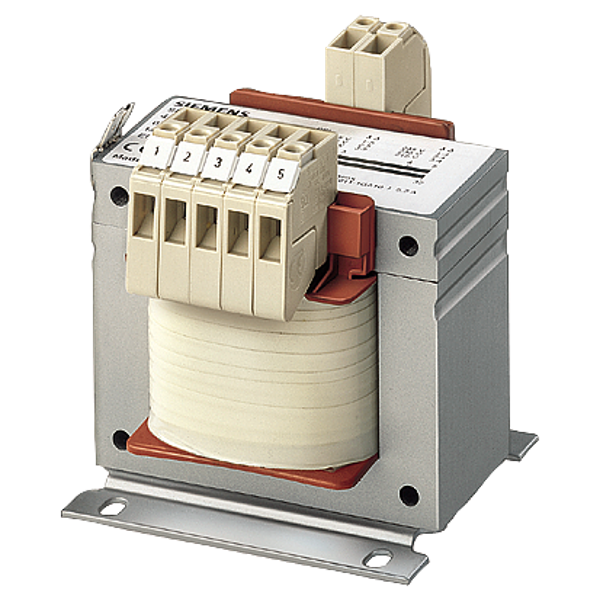

Transformer 1-ph. PN/PN(kVA) 0.09/0.31, Upri(V) 230, Usec(V) 24, Isec(A) 3.75

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

192,68 € per pcs

This price is valid until 31.12.25

EAN: 4001869910987

MPN: 4AM3442-4TN00-0EC0

Box: 1

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	Transformer 1-ph. PN/PN(kVA) 0.09/0.31, Upri(V) 230, Usec(V) 24, Isec(A) 3.75
Brand	Siemens
Categories	Low Voltage Transformers
Country of origin	CZ
Harmonized System Code	8504 3180 00
Width	86 mm
Height	98 mm
Depth	102 mm
Conductor material	Other
Primary voltage 1	242 V
Primary voltage 2	230 V
Primary voltage 3	218 V
Built as safety transformer	No
Built as isolating transformer	No
Secondary voltage 1	24 V
Rated apparent power	90 VA

Packing details

Packing level 1

4001869910987

Other Technical data

Modular version	No
Suitable for mounting on PCB	No
Ring core	No
Built as energy saving transformer	No
Type of insulation material according to IEC 85	B
Short-circuit-proof	No
Relative short circuit voltage	7.7 %

Description

TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):0,09 /0,31; UPRI(V):230+/-5%; USEC(V):24; ISEC(A):3,75; F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0; TA/ISOKL:40 /B; IP23; TYPE OF TERMINALS:SCREW/TAB CONNECTION; INSTALLATION:SCREW; EN 61558-2-2, -2-6 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER SAFETY ISOLATING TRANSFORMER The 4AM transformers unite all properties of single-phase safety, isolating, control and line transformers. With these properties, they can effortlessly handle any application. The control transformers are also characterized by their short-time rating.
