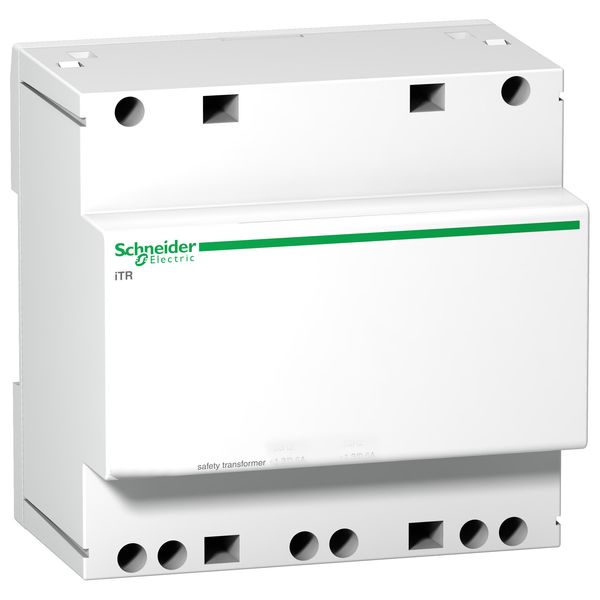

Transformators 40VA 12/24 V

In stock: No Vendor stock: Yes Minimal order quantity: 1

Price (excl. VAT):

88,89 €

This price is valid until 31.12.25

EAN: 3606480097829

MPN: A9A15220

Package: 1

Box: 8

Pallet: 64

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	Transformators 40VA 12/24 V
Brand	Schneider Electric
Categories	Ring doorbell
Country of origin	DE
Harmonized System Code	8504 3129 00
Width	90 mm
Height	89 mm
Type of transformer	Safety transformer
With on/off switch	No
Modular version	Yes
Max. output current	0 A
Length	60 mm
Max. output power	0 W
Width in number of modular spacings	5
Surface mounting	No
Short-circuit protected	Yes
Primary voltage	230 V
Secondary voltage 1	12 V
Secondary voltage 2	24 V
Secondary voltage 3	0 V
Secondary amperage 1	3.33 A
Secondary amperage 2	1.7 A
Secondary amperage 3	0 A
Temperature protection	Yes
Max. power loss	4 W
Flush-mounted installation	No

Packing details

Packing level 1	3606480097829
Packing level 2	3606480097826
Packing level 3	3606480097829

Downloads

Declaration DOC CE (Declaration of conformity CE) Mounting instruction

Description

This Acti 9 iTR 40VA safety transformer allows to obtain a very low voltage 12VAC or 24VAC from a network 230VAC. The transformer is safe meaning that primary and secondary circuits are perfectly insulated by each other. The power supply is 40VA. The operating frequency is 50Hz or 60Hz. The primary voltage is 230VAC +/-10%. The secondary voltage output is 12VAC or 24VAC +/-5%. It is resistant to short-circuit currents thanks to the built-in-device. The off load voltage is 14VAC for a 12VAC rated secondary voltage. The off load voltage is 28VAC for a 24VAC rated secondary voltage. It is a Class II device with terminal shield (optional). The safety transformer should be mounted on DIN rail in vertical position only. The width in 9mm pitches is 10. The weight is 1190g. The degree of protection under IEC 60529 standard is IP20 with terminal shield. The dimensions are (W) 90mm x (H) 89mm x (D) 60mm. The width in modules of 18mm is 5. The operating temperature is -20°C to 55°C. The storage temperature is -25°C to 80°C. This product complies with IEC/EN 61558-2-6 standard.
