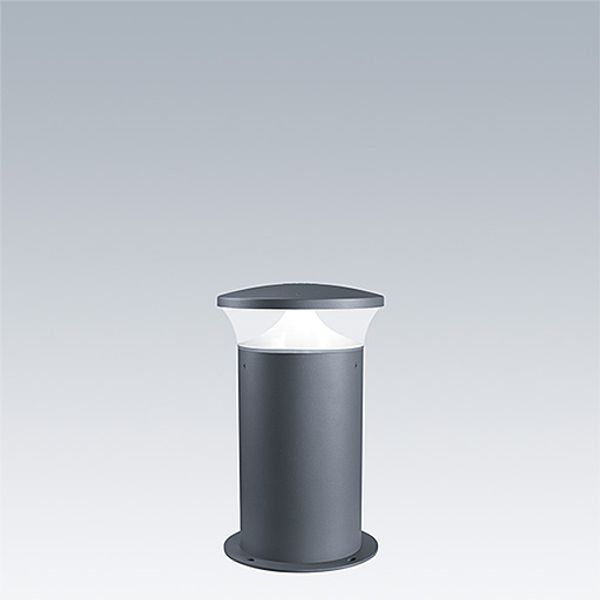

TR B W 10L25 730 ASY CL2 MPL - LED bollard image 1

TR B W 10L25 730 ASY CL2 MPL - LED bollard image 2

TR B W 10L25 730 ASY CL2 MPL - LED bollard image 3

TR B W 10L25 730 ASY CL2 MPL - LED bollard

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 3607640226042

MPN: 96264268

Package: 1

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	TR B W 10L25 730 ASY CL2 MPL - LED bollard
Brand	Thorn
Categories	Street and park luminaires
Country of origin	FR
Colour rendering index CRI	70-79
Height/depth	541 mm
Lamp type	LED not exchangeable
Impact strength	IK10
Nominal voltage	230 V
Degree of protection (IP)	IP66
Colour temperature	3000 K
Max. system power	11 W
Rated luminous flux according to IEC 62722-2-1	565 lm

Packing details

Packing level 1

3607640226042

Other Technical data

Protection class	I
Lamp holder	None
With base plate	No
Colour housing	Grey
Voltage type	AC
With movement sensor	No
Type of control gear	LED operating device current-controlled
Diameter	250 mm
With light sensor	No
Housing material	Aluminium
Light outlet	Direct
Light sharing	Asymmetric
Material cover	Plastic, transparent
With light source	Yes
Suitable for number of lamps	1
With control gear	Yes
Colour of light	White
Constant light output (CLO)	No
IFTTT support available	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker B16	36
Flickering value Pst LM	1
Colour temperature adjustable	No
Luminous flux adjustable	No
Exchangeable control gear	Yes

Downloads

Deep link REACH Declaration DOC CE (Declaration of conformity CE)

Description

An elegant vandal resistant asymmetrical slim bollard with high performance optic. For Electronic, fixed output control gear. IP66 Electrical Class ll. Column and Base: aluminium (EW AW 6060). Canopy: die-cast aluminium (EN AC 47100). Diffuser: Clear anti UV polycarbonate. Gear Box: polycarbonate. Canopy and Column colour: powder coated anthracite (close to RAL7043) (close to RAL7043). Ready to install prewired luminaire. Connection box required, to be ordered separately. Complete with 3000K LED _x000D_ _x000D_ Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 200mm_x000D_ _x000D_ Dimensions: 250 x 250 x 541 mm_x000D_ Luminaire input power: 11 W_x000D_ Weight: 9 kg
