TR B S 10L35 SLA 730 RGB R/S CL2 MGR - LED bollard
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
2 011,49 €
EAN: 3607640375313
MPN: 96273335
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | TR B S 10L35 SLA 730 RGB R/S CL2 MGR - LED bollard |
| Brand | Thorn |
| Categories |
Street and park luminaires
|
| Country of origin | FR |
| Colour rendering index CRI | 70-79 |
| Height/depth | 1017 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000 K |
| Max. system power | 13 W |
| Rated luminous flux according to IEC 62722-2-1 | 1069 lm |
Packing details
| Packing level 1 | 3607640375313 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| With base plate | No |
| Colour housing | Grey |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Diameter | 160 mm |
| With light sensor | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Colour of light | RGB |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker B16 | 18 |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | Yes |
Downloads
Description

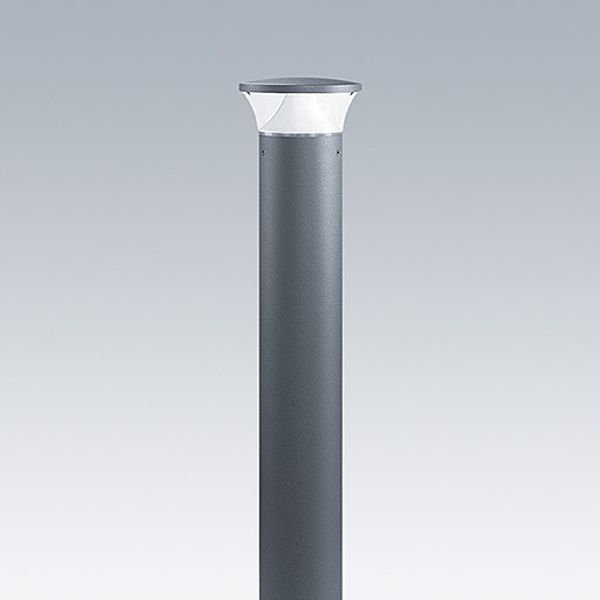

An elegant vandal resistant radially symmetric slim bollard with high performance optic. For Electronic, fixed output control gear. IP66 Electrical Class ll. Column and Base: aluminium (EW AW 6060). Canopy: die-cast aluminium (EN AC 47100). Diffuser: Clear anti UV polycarbonate. Gear Box: polycarbonate. Canopy and Column colour: powder coated anthracite (close to RAL7043) (close to RAL7043). RGB decorative lit band at the base of the head to be easily set at installation. Ready to install prewired luminaire. Connection box required, to be ordered separately. Complete with 3000K LED _x000D_
_x000D_
Dimensions: 160 x 160 x 1017 mm_x000D_
Luminaire input power: 13 W_x000D_
Weight: 9.3 kg
