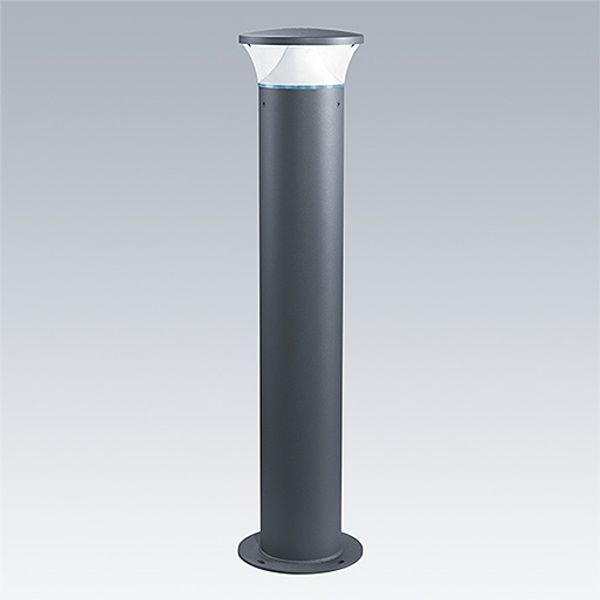

TR B S 10L35 MAS 740 RGB R/S CL1 MPL - LED bollard image 1

TR B S 10L35 MAS 740 RGB R/S CL1 MPL - LED bollard image 2

TR B S 10L35 MAS 740 RGB R/S CL1 MPL - LED bollard image 3

TR B S 10L35 MAS 740 RGB R/S CL1 MPL - LED bollard

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

2 294,52 €

This price is valid until 24.12.25

EAN: 3607640375023

MPN: 96273306

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	TR B S 10L35 MAS 740 RGB R/S CL1 MPL - LED bollard
Brand	Thorn
Categories	Street and park luminaires
Country of origin	FR
Colour rendering index CRI	70-79
Height/depth	1017 mm
Lamp type	LED not exchangeable
Impact strength	IK10
Nominal voltage	230 V
Degree of protection (IP)	IP66
Colour temperature	4000 K
Max. system power	13 W
Rated luminous flux according to IEC 62722-2-1	1176 lm

Packing details

Packing level 1

3607640375023

Other Technical data

Protection class	I
Lamp holder	None
With base plate	No
Colour housing	Grey
Voltage type	AC
With movement sensor	No
Type of control gear	LED operating device current-controlled
Diameter	160 mm
With light sensor	No
Housing material	Aluminium
Light outlet	Direct
Light sharing	Symmetric
Material cover	Plastic, transparent
With light source	Yes
Suitable for number of lamps	1
With control gear	Yes
Colour of light	RGB
Constant light output (CLO)	No
IFTTT support available	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker B16	18
Flickering value Pst LM	1
Colour temperature adjustable	No
Luminous flux adjustable	No
Exchangeable control gear	Yes

Downloads

Deep link REACH Declaration DOC CE (Declaration of conformity CE)

Description

An elegant vandal resistant radially symmetric slim bollard with high performance optic. For Electronic, fixed output control gear. IP66 Electrical Class l. Column and Base: aluminium (EW AW 6060). Canopy: die-cast aluminium (EN AC 47100). Diffuser: Clear anti UV polycarbonate. Gear Box: polycarbonate. Canopy and Column colour: powder coated anthracite (close to RAL7043) (close to RAL7043). RGB decorative lit band at the base of the head to be easily set at installation. Integral presence detector for on/off control. Ready to install prewired luminaire. Connection box required, to be ordered separately. Complete with 4000K LED _x000D_ _x000D_ Flange mounting: 4 x anchor bolts M14 (to be ordered separately), spacing: 150mm_x000D_ _x000D_ Dimensions: 160 x 160 x 1017 mm_x000D_ Luminaire input power: 13 W_x000D_ Weight: 7.7 kg
