TR 610 top2 110V UL

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

84,23 €

This price is valid until 31.12.25

EAN: 4003468613047

MPN: 6101100

Package: 1

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	TR 610 top2 110V UL
Brand	Theben
Categories	Push Buttons and Control
Country of origin	DE
Harmonized System Code	9107 0000 00
Mounting method	DIN rail
Number of channels	1
Radio-controlled	No
Contact type	Change-over contact (NO/NC)
60 min program	No
Cycle program	No
Mains synchronous	No
Quartz controlled	Yes
Automatic switching summer-/winter time	Yes
Voltage type of supply voltage	AC
Supply voltage	115-120 V
Frequency supply voltage	60 Hz
Nominal switching current at 250 V AC	8 A
Degree of protection (IP)	IP20

Packing details

Packing level 1

4003468613047

Other Technical data

Width	35 mm
Height	90 mm
Depth	60 mm
Number of memory locations	56
Astro program	No
Weekly program	Yes
Annual program	No
Width in number of modular spacings	2
24 h program	Yes
Holiday program	Yes
Random program	No
Impulse program	No
Suitable for manual operation	Yes
Switching preselection	Yes
Potential free switch contact	Yes
Hour meter	Yes
Autonomy in years	10
Shortest switching time channel 1	1 min
Text guidance in display	Yes
Accuracy per day	0.5 s
External pushbutton input	No

Downloads

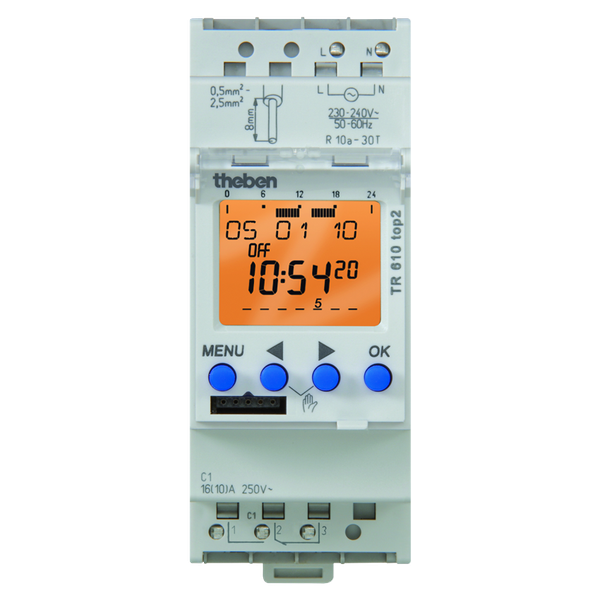

Product picture

Description

Digital time switch with weekly program 1 channel Programming by app possible Safe transfer via optional Bluetooth Low Energy OBELISK top3 Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch 100 % compatible with top2 DuoFix spring terminals For 2 conductors each
