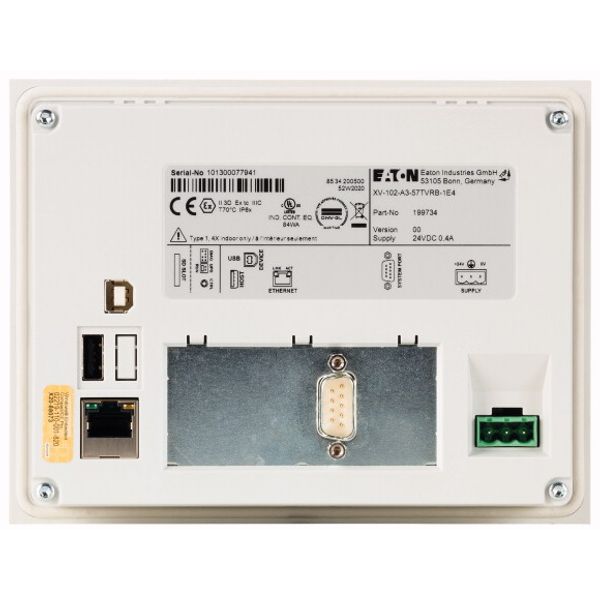

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 1

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 2

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 3

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 4

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 5

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 6

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 7

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 8

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 9

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 10

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 11

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 12

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 13

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 14

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 15

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 16

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 17

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 18

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 19

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 20

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 21

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 22

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 23

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 24

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 25

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 26

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 27

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC) image 28

XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC)

Name: XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC)
Brand: EATON
Price: 447.850 EUR
Availability: PreOrder

In stock: No Vendor stock: Yes Minimal order quantity: 1

Price (excl. VAT):

447,85 €

This price is valid until 24.12.25

EAN: 7640130099746

MPN: 199734

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	XV-102-A3-57TVRB-1E4 Touch panel, 24 V DC, 5.7z, TFTcolor, ethernet, RS232, (PLC)
Brand	EATON
Categories	HMI Panels & Operator Interfaces
Country of origin	CZ
Harmonized System Code	8537 1091 00
Operating temperature	0-50 °C
Voltage type of supply voltage	DC
Degree of protection (IP), front side	IP65
Supply voltage AC 50 Hz	0 V
Supply voltage AC 60 Hz	0 V
Supply voltage DC	20.4-28.8 V
Degree of protection (NEMA), front side	4X

Packing details

Packing level 1

7640130099746

Other Technical data

Built-in depth	34 mm
Suitable for safety functions	No
Screen diagonal	5.7 inch
Supporting protocol for LON	No
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	1
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
Supporting protocol for TCP/IP	No
Supporting protocol for ASI	No
Supporting protocol for PROFIBUS	No
Supporting protocol for CAN	No
Supporting protocol for INTERBUS	No
Supporting protocol for KNX	No
Supporting protocol for Modbus	No
Supporting protocol for Data-Highway	No
Supporting protocol for DeviceNet	No
Supporting protocol for SUCONET	No
Supporting protocol for other bus systems	No
With colour display	Yes
Number of colours of the display	64000
Number of pixels, horizontal	320
Number of pixels, vertical	240
Number of function buttons, programmable	0
With numeric keyboard	Yes
With alpha numeric keyboard	Yes
Useful project memory/user memory	64000 kByte
With message indication	Yes
With message system (incl. buffer and confirmation)	Yes
Process value representation (output) possible	No
Process default value (input) possible	No
With recipes	Yes
Number of password levels	200
With printer output	Yes
Number of online languages	100
Additional software components, loadable	No
With SW interfaces	Yes
Width of the front	170 mm
Height of the front	130 mm
Rail mounting possible	No
Supporting protocol for SERCOS	No
Supporting protocol for INTERBUS-Safety	No
Number of interfaces PROFINET	0
Number of HW-interfaces Wireless	0
Wall mounting/direct mounting	No
Radio standard Bluetooth	No
Radio standard Wi-Fi 802.11	No
IO link master	No
Supporting protocol for AS-Interface Safety at Work	No
Supporting protocol for DeviceNet Safety	No
Supporting protocol for EtherNet/IP	No
Supporting protocol for Foundation Fieldbus	No
Supporting protocol for PROFINET CBA	No
Supporting protocol for PROFINET IO	No
Supporting protocol for PROFIsafe	No
Supporting protocol for SafetyBUS p	No
Type of display	TFT
Number of grey-scales/blue-scales of display	0
Radio standard GPRS	No
Radio standard GSM	No
Radio standard UMTS	No
Number of buttons with LED	0
Number of system buttons	1
Touch technology	Resistive touch

Description

User interface, XV-102, Product range: XV100 5.7z, Function: HMI-PLC (PLC retrofitted by user), Common features of the model series: Ethernet interface, USB device, USB Host, Slot for SD card, UL508, cUL approvals, Display - Type: Color display, TFT, Touch-technology: Resistive-Touch, Number of colors: 64 k Colors, Resolution: VGA, 640 x 480 Pixel, Portrait format: yes, Screen diagonal: 5.7 Inch, Insulating enclosure and front plate, Operating system: Windows CE 5.0 (license incl.), PLC-license: Can be fitted by user with article no. 142581 LIC-PLC-MXP-COMPACT, License certificates for onboard interfaces: Can be expanded as required , see Accessories -> License product certificates, built-in interfaces: 1 x Ethernet 10/100 Mbps, 1 x USB device, 1 x RS232, 1 x USB host 2.0, Front type: Standard front with standard membrane (fully enclosed), Utilization: Flush mounting, Slots: for SD card: 1, Memory card automation: Optionally with SD card -> article no. 139807, Pluggable communication cards (optional): no, Touch sensor: Glass with film, Heat dissipation: 9.5 W, Degree of protection (IEC/EN 60529, EN50178, VBG 4): IP65 (at front), IP20 (at rear)
