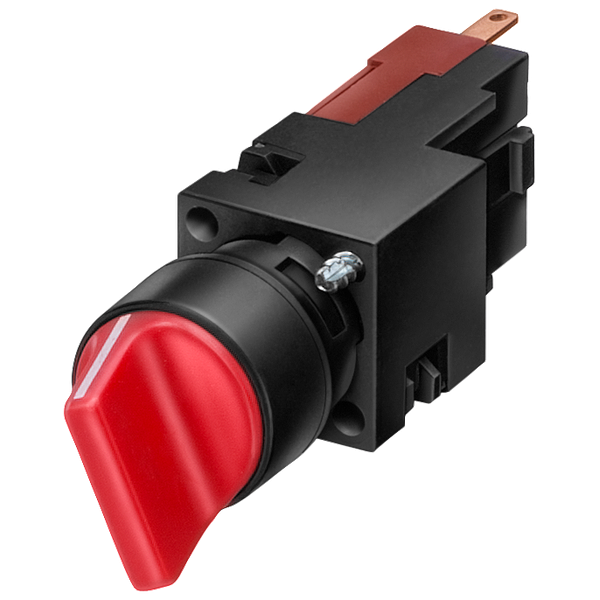

Toggle switch, 16 mm, round plastic, black

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

15,42 € per pcs

This price is valid until 24.12.25

EAN: 4011209028081

MPN: 3SB2202-2AB01

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Toggle switch, 16 mm, round plastic, black
Brand	Siemens
Categories	Control Switches
Country of origin	CZ
Harmonized System Code	8536 5080 00
Colour button	Black
Number of switch positions	2

Packing details

Packing level 1

4011209028081

Other Technical data

Hole diameter	16 mm
Suitable for illumination	No
Spring-return	No
Colour front ring	Black
Supply voltage	5-250 V
Width opening	19 mm
Height opening	17 mm
With light source	No
Material front ring	Plastic
With front ring	Yes
Switching function latching	Yes
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0

Description

Selector switch, 16 mm, round, plastic, black, 2 switch positions O-I, latching, actuating angle 62 degree, 1 NO Selector switches SIRIUS 3SB2 for switching and controlling electrical loads. The industry-standard 3SB2 pushbuttons and indicator lights have a modular design and are proven in practice. Thanks to their compact design, they are particularly suitable for small control panels. They are extremely functional and rugged, and comply with the IEC/EN 60947-5-1 and 60947-5-5 standards. They can be installed with a high packing density and without the need for any special tools. Versions available: Several colors, 2-3 switching positions, latching/momentary contact operation. Note: Complete unit, supplied with holder and contact block(s). 3SB2 - Space-saving, proven in practice and industry standard!
