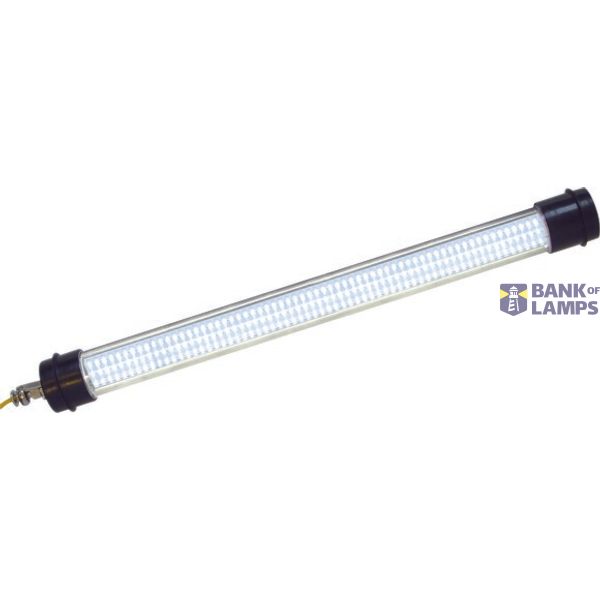

TL60D LED 1780 36W 24 V AC/DC 50-60HZ
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | TL60D LED 1780 36W 24 V AC/DC 50-60HZ |
| Brand | EATON |
| ETIM | EC000989 |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP68 |
Packing details
| Packing level 1 | 4250217422041 |
Other Technical data
| Protection class | I |
| Width | 43 mm |
| With connection cord and plug | Yes |
| Voltage type | AC/DC |
| Suitable for lamp power | 36 W |
| Type of control gear | Electronic ballast |
| Diameter | 43 mm |
| With switch | No |
| With CEE-plug | No |
| Height/depth | 1.901 mm |
| Temperature class according to directive 94/9/EC | T5 |
| Nominal voltage | 24 V |
| With protective cover | Yes |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| For Ex-Zone dust | 21, 22 |
| Max. system power | 36 W |
| Rated luminous flux according to IEC 62722-2-1 | 3.2 lm |
| Colour of light | White |
| Degree of protection (NEMA) | Other |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Energy efficiency class of the provided exchangeable built-in lamp | A++ |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Power factor | 0.95 |
Description
Temporary Basic ML 60d LED3624 V AC/DC, with trumpet shaped cable gland, mains cord 5 m H07RN-F 3 without plug
