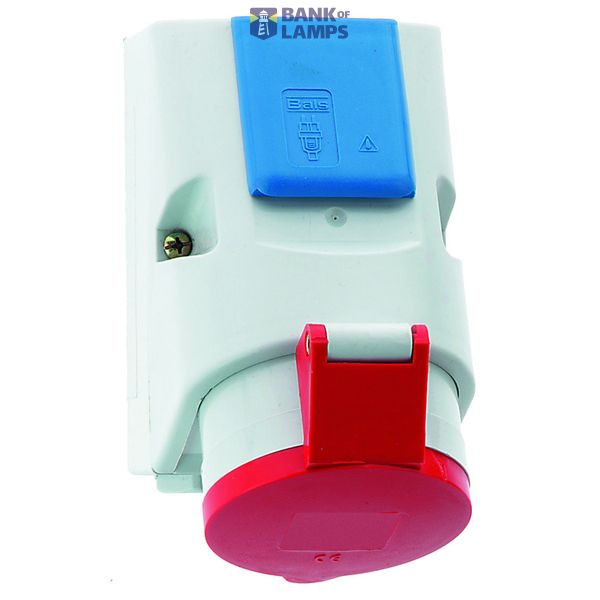

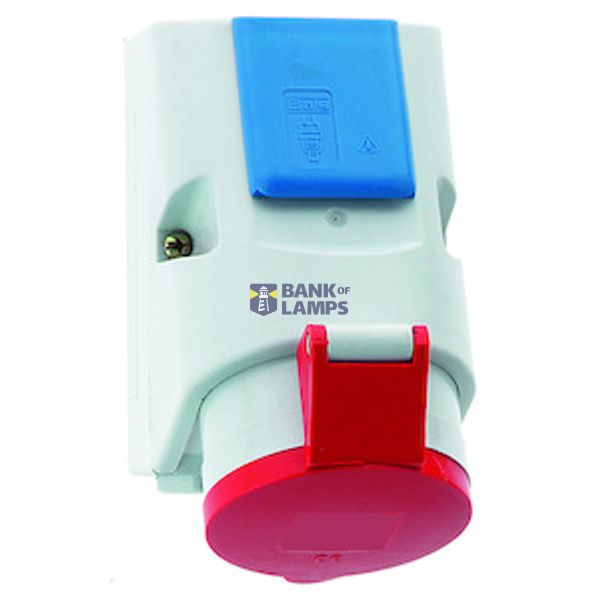

TK combi 6h 16A 5P 400V IP44 126x83

Order only Not Available

Technical Information

Item condition	New
Manufacture name	TK combi 6h 16A 5P 400V IP44 126x83
Brand	Bals
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC000379
Surface treatment contacts	Untreated
Handling	Wall mounting
Contact material	CuZn
Degree of protection (IP)	IP44
Military model	No

Packing level 1

4024941001076

Colour	Grey
Width	83 mm
Height	154 mm
Depth	130 mm
Number of socket outlets with protective contact (type F)	1
Cable length	0 m
Protection	None
Housing material	Plastic
Earth leakage switch	None
CEE socket outlet 16 A	1x16A5p400V
CEE socket outlet 32 A	None
CEE socket outlet 63 A	None
CEE socket outlet 125 A	None
Other fixtures and/or empty locations	0
Number of miniature circuit breakers	0
Number of socket outlets Swiss standard type 13	0
Number of socket outlets Swiss standard type 15	0
Number of socket outlets Swiss standard type 23	0
Number of socket outlets Swiss standard type 25	0
Number of socket outlets Danish standard (earthing pin)	0
Number of poles mains connection	5
Diameter cable entry	M25

Declaration RoHS Others Deep link REACH

- Met klemmen, zonder bedrading
- Met geïntegreerd geaard stopcontact 16A/230V~
- Beschermingsklasse IP44
