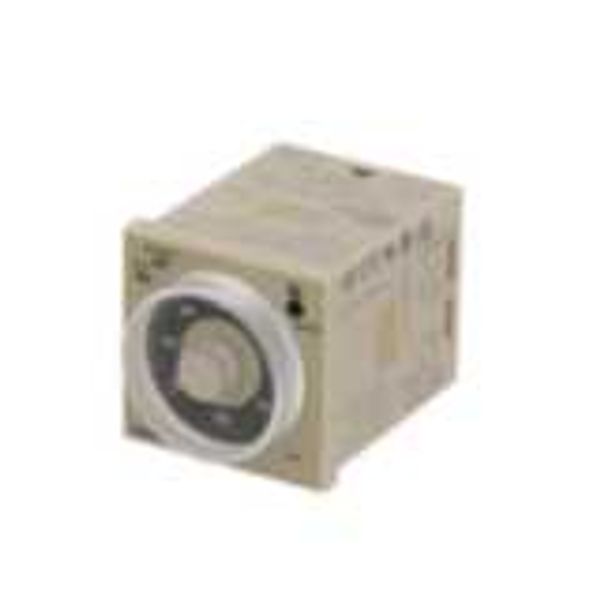

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off H3CR8098M
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
76,12 €
EAN: 4548583553347
MPN: H3CR-A8E 24-48VAC/DC
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off H3CR8098M |
| Brand | Omron |
| Categories |
Timer Relays
|
| Country of origin | NL |
| Harmonized System Code | 8536 4900 00 |
| Clock function, starting with pulse, variable | Yes |
| With semiconductor output | No |
| Function delay-on energization | No |
| Time range | 0.05-1080000 s |
| Type of electric connection | Plug-in connection |
| Rated control supply voltage at AC 50 Hz | 24-48 V |
| Number of outputs, undelayed, normally closed contact | 0 |
| Number of outputs, delayed, change-over contact | 1 |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Voltage type for actuating | AC/DC |
Packing details
| Packing level 1 | 4548583553347, 4548583553347 |
Other Technical data
| Nominal current | 5 A |
| Width | 48 mm |
| Height | 48 mm |
| Depth | 68 mm |
| Remote operation possible | No |
| Suitable as remote control | No |
| Function flashing, starting with pause, fixed time | No |
| Function flashing, starting with pulse, fixed time | No |
| Clock function, starting with pause, variable | No |
| Function floating contact on energization | No |
| Function star-delta | No |
| Function delay on de-energization | No |
| Function floating contact on de-energization | No |
| Function pulse shaping | No |
| Rated control supply voltage at AC 60 Hz | 24-48 V |
| Rated control supply voltage at DC | 24-48 V |
| Number of outputs, undelayed, normally open contact | 0 |
| Number of outputs, undelayed, change-over contact | 1 |
| Number of outputs, delayed, normally closed contact | 0 |
| Number of outputs, delayed, normally open contact | 0 |
| Pluggable on auxiliary contact block | No |
| Outputs, reversible delayed/undelayed | Yes |
Downloads
Description
Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT (inc. inst.), 5 A
