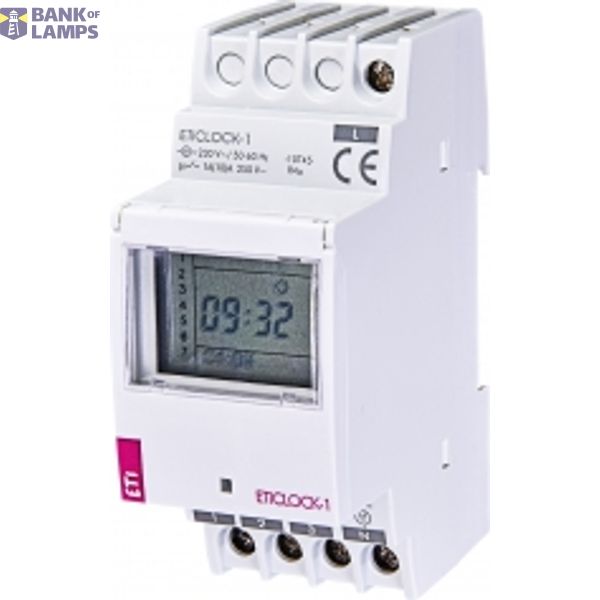

ETICLOCK-1
In vendor's stock
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ETICLOCK-1 |
| Brand | ETI |
| ETIM | EC002305 |
| Mounting method | DIN rail |
| Number of channels | 1 |
| Radio-controlled | No |
| GPS (global positioning system) | No |
| 60 min program | No |
| Cycle program | Yes |
| Mains synchronous | No |
| Quartz controlled | No |
| Automatic switching summer-/winter time | No |
| Voltage type of supply voltage | AC |
| External programming | No |
| Radio-controlled (DCF77) | No |
| Supply voltage | 230 V |
| Frequency supply voltage | 50 Hz |
| Nominal switching current at 250 V AC | 16 A |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 5904722951525, 8426709103705 |
| Packing level 2 | 3838895689805, 3838895689805 |
| Packing level 3 | 8426709103705, 8426709103705 |
Other Technical data
| Width | 35.8 mm |
| Height | 90 mm |
| Depth | 65 mm |
| Number of memory locations | 32 |
| Astro program | No |
| Weekly program | Yes |
| Annual program | No |
| Width in number of modular spacings | 2 |
| 24 h program | Yes |
| Holiday program | No |
| Random program | No |
| Impulse program | No |
| Suitable for manual operation | Yes |
| Switching preselection | No |
| Potential free switch contact | No |
| Hour meter | No |
| Autonomy in years | 4 |
| Shortest switching time channel 1 | 0.02 min |
| Text guidance in display | No |
| External pushbutton input | No |
| With memory card | No |
Description
Time relay - digital, ETICLOCK-1, Catalogue Group Time relay (Digital), Catalogue subgroup Time relay digital, Category Digital time switch ETICLOCK, Function Time relay
