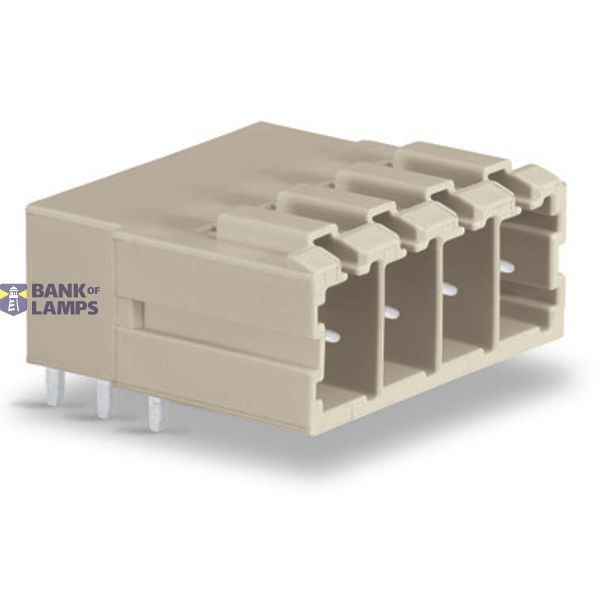

THT male header
Order only
Minimal order quantity: 12
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | THT male header |
| Brand | WAGO |
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC002637 |
| Type of connection | Flexible PCB-connector |
| Rated voltage | 630 V |
| Number of poles | 8 |
| Operating temperature | -60-105 °C |
| Rated surge voltage | 6 kV |
| Type of electric connection | Soldering connection |
| Connector model | Free connector |
| Angle PCB/contact | 0°/180° (horizontal) |
| Rated current In | 41 A |
Packing details
| Packing level 1 | 4045454002237 |
Other Technical data
| Colour housing | Other |
| Contact type | Pin |
| Type of fastening | Solder |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Tin |
| Over voltage category | III |
| Pollution degree | 2 |
| Length pin | 4 mm |
| Modular spacing connections | 7.62 mm |
| Number of plug-in contact rows | 1 |
| Type of banding | None |
| Suitable for PCB thickness | 1.5 mm |
| Modular spacing contacts | 7.62 mm |
| Material insulation body | Thermoplastic |
| Type of PCB fastening | Connecting contact |
Description
THT male header | 1.0 x 1.2 mm solder pin | angled | 100% protected against mismating | Pin spacing 7.62 mm | 8-pole
