Three-pole earthing and short-circuiting device VI 16mm² for phase T p

Name: Three-pole earthing and short-circuiting device VI 16mm² for phase T p
Brand: Dehn
Price: 666.320 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

666,32 €

This price is valid until 30.06.26

EAN: 4013364163751

MPN: VZPW9LG

Package: 1

Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition	New
Manufacture name	Three-pole earthing and short-circuiting device VI 16mm² for phase T p
Brand	Dehn
Categories	Electrical Safety Equipment
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8535 9000 00
Model	Cable
Number of poles	3
Max. short circuit current	4.5 kA
Wire cross section, phase-side	16 mm²
Wire cross section, earth-side	16 mm²

Packing details

Packing level 1

4013364163751, 4013364163751

Other Technical data

Material	Copper
Length phaseline a	170 mm
Length phaseline b	140 mm
Length phaseline c	140 mm
Length earth line	275 mm
Connecting part, phase-side	Other
Fully insulated	Yes

Downloads

Product data sheet

Description

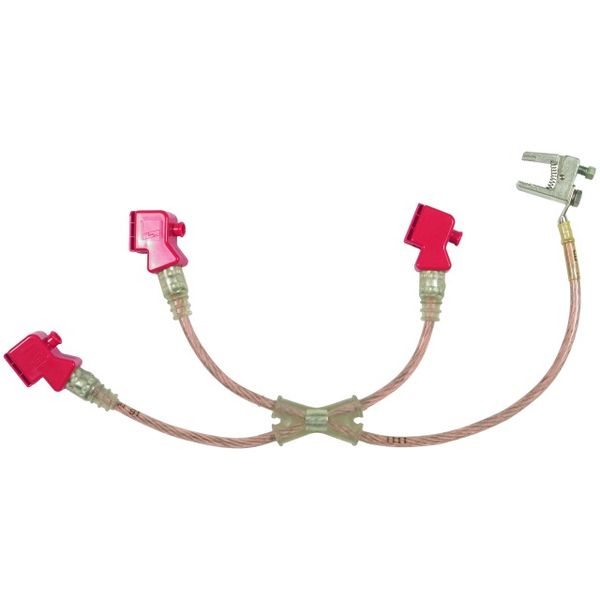

Earthing and short-circuiting device VI. Fully insulated and shock-proof version. Spring-loaded earth clamp, clamping range up to 24 mm, installation via adjustable handle (Part No. 745 921). For service entrance boxes. Variant No. of the earthing and short-circuiting device: VZPW9LG. Other cable lengths can be configured online via the earthing and short-circuiting configurator at www.dehn.de/en/euk.
